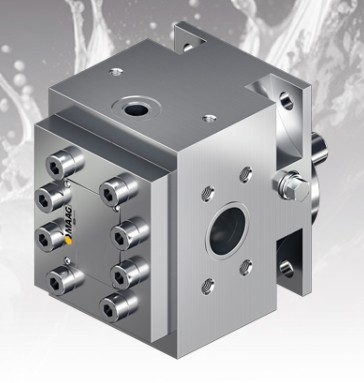

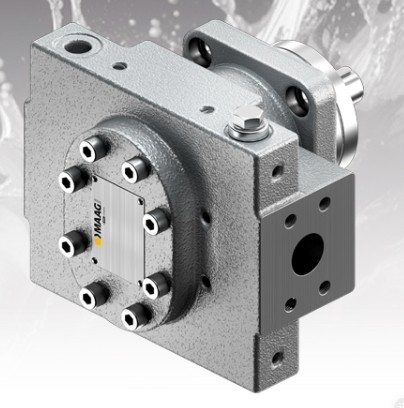

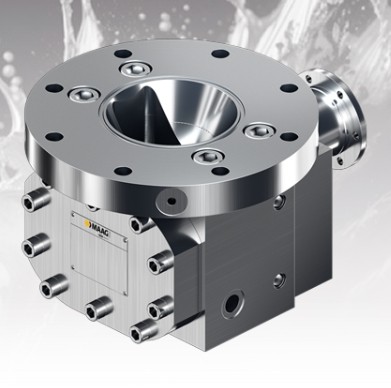

MAAG gear pumps for chemicals and polymers Stainless steel reactor discharge pumps CINOX-V THERMINOX-V

Designed for highly viscous fluids, they can be slowly extracted from reactors and

vacuum exhausts even at low inlet pressures, ensuring good filling characteristics and short residence

times during polymer production.

This new polymer pump series combines the excellent flow characteristics of polymer pumps with the stringent requirements of the chemical industry.

MAAG gear pumps for chemicals and polymers Stainless steel reactor discharge pumps CINOX-V THERMINOX-V Advantages: Good filling characteristics due to enlarged inlet and good inlet geometry, low pulsation, application-specific clearances, higher efficiency, reliability, long service life, and safety.

MAAG gear pumps  Typical Pumping Media (EN)

Organic and Inorganic Chemicals

Solvents

Acids and Alkalis

Latexes

Sludge and Condensate

Prepolymers, Oligomers, and Monomers (PAN)

Additives

Resins

Cellulose Derivatives and Pulp

Silicone

Waxes and Paraffins

Cosmetics

Pharmaceuticals

Food Extracts and Flavorings

Gum Bases

Animal and Vegetable Oils and Fats

Molten Sulfur

MAAG gear pumps  Certifications (EN)

ATEX 3.1 Certificate

German Air Quality Certificate (TA-Luft)

Performance Test Certificate

MAAG gear pumps  Options

Heated Seals

Bidirectional Operation

Special Modifications for Demanding Applications

MAAG gear pumps  Technical Data

Speed [rpm] Max. 3,000

Differential Pressure [bar] Max. 200

Viscosity (mPas) 0.3 – 4,000,000

Temperature -30 – 320

Output l/min 0.1 – 2,400

Housing * Stainless Steel * Hastelloy

Gear Shaft * Stainless Steel * Iron/Aluminum * Hastelloy * Ceramic SSiC* High-tech polymer (upon request)*

Titanium (upon request)

Shaft seals * Single or double mechanical seals * Single or double mechanical balanced seals * Lip seals and

gland packings * Seal rings available in a variety of materials * Sealing or heating medium connections

available * Single or double shell electromagnetic couplings

Connections: SAE, CETOP, DIN, and ANSI flanges

Pump heating * Cinox® with optional electric heating cartridges * Therminox® with optional integrated

channels for heating/cooling via steam or liquid
