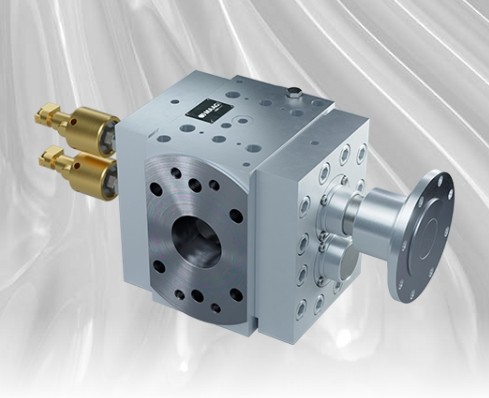

MAAG Gear Pumps Extrusion Booster Gear Pumps for the Elastomer Processing Industry - extrex ER

Elastomer processing requires positive displacement pumps to gently convey high-viscosity rubber through the system.

The specially designed low-compression teeth of the extrex⁶ ER extrusion gear pumps meet high-pressure and low-shear

requirements for conveying, boosting, or metering gear pumps.

The extrusion gear pump delivers rubber compounds at a constant, precise flow rate even at high discharge pressures. It is also suitable for handling dry or viscous compounds, where previous generation extrusion pumps have reached their performance limits due to scorching. Furthermore, the reduced internal friction improves sustained high efficiency and service life.

Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.

MAAG Gear Pumps Extrusion Booster Gear Pumps for the Elastomer Processing Industry - extrex ER

Advantages

Advantages of SP

Advantages of GU

Specific volume increased by 26% compared to RB

Specific volume increased by 10% compared to RV

Pressure increased by 14%

Wear resistance increased by 25%

Wear resistance increased by 25%

Seal surface increased by 25%

Various typical pumped media (EN)

Elastomers

Silicone rubber

MAAG Gear Pumps Extrusion Booster Gear Pumps for the Elastomer Processing Industry - extrex ER  Options

Rotary joints and accessories for shaft fluid temperature control

Body

4 sensor ports (2 standard)

MAAG Gear Pumps Extrusion Booster Gear Pumps for the Elastomer Processing Industry - extrex ER  Technical Data

Viscosity (Pas) 30,000 Pas

Temperature °C max. 120

Housing

Alloy/carbon steel - other materials available upon request

Gear shaft

Tool steel, special coatings

Bearings

Tool steel/special materials

Shaft seal

Threaded seal, threaded seal temperature control

Pump heating

Hot water or oil

Shaft heating

Hot water or oil

Installation

Extrex® rubber gear pumps can be flanged between the extruder and extruder head, as well as between the screen changer or filter head.
