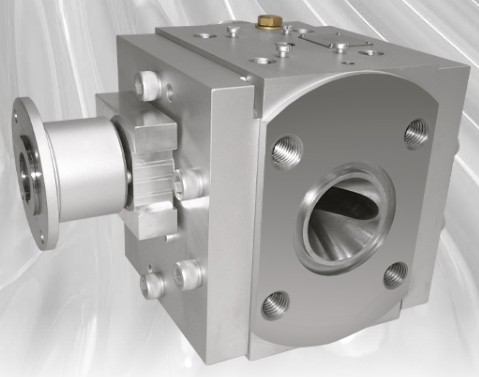

MAAG Gear Pumps Gear Pumps for General Thermoplastics Extrusion - EXTREX GA

The new generation of pumps offers the same quality characteristics as its predecessor – excellent reliability and a long service life. With over 50,000 MAAG gear pumps in operation worldwide, you can choose with confidence.

Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.

MAAG Gear Pumps Gear Pumps for General Thermoplastics Extrusion - EXTREX GA Advantages

Gear and bearing technology improves overall efficiency and reduces wear. Low-pulsation pumping is achieved even at

high differential pressures. Simplified and compact design.

MAAG Gear Pumps Gear Pumps for General Thermoplastics Extrusion - EXTREX GA  Typical Pumping Media (EN):

Acrylonitrile-Butadiene-Styrene

High-Density/High-Molecular-Weight Polyethylene

Low-Density/Linear-Low-Density Polyethylene

Polyamide 6

Polybutylene

Polybutylene Terephthalate

Polyisobutylene

Polypropylene

Polystyrene and High-Impact Polystyrene

Other polymers (upon request)

MAAG Gear Pumps Gear Pumps for General Thermoplastics Extrusion - EXTREX GA  Options

More complex and demanding applications require the Extrex® series pumps. Our sales department will provide you

with layout recommendations for these gear pumps and submit a quote.

MAAG Gear Pumps Gear Pumps for General Thermoplastics Extrusion - EXTREX GA  Accessory Description

Special accessories are only available with our Extrex® and Expac® programs. Our sales team will work with you to

develop a solution for your specific needs.

MAAG Gear Pumps Gear Pumps for General Thermoplastics Extrusion - EXTREX GA  Technical Data

Differential Pressure [bar] Up to 100

Viscosity (mPas) 8,000,000

Temperature °C Up to 350

Casing Alloy Steel

Gear Shaft Tool Steel

Shaft Seal Alloy Steel

Pump Heating Electric
