STTS Drum Pumps
Tube Materials: 316 stainless steel or CPVC
Max Flow: 10 gpm (38 lpm)
Max Head: 10 ft (3 m)
TT Series Drum/Barrel Pumps
Drum/Barrel Pumps - STTS Drum Pumps
TT Series pumps offer light to medium viscosity fluid handling. Drum pumps in this series are ideal for liquids containing small particulate or solvents.
FTI STTS 316 stainless steel or CPVC Drum Barrel Pumps Features include:

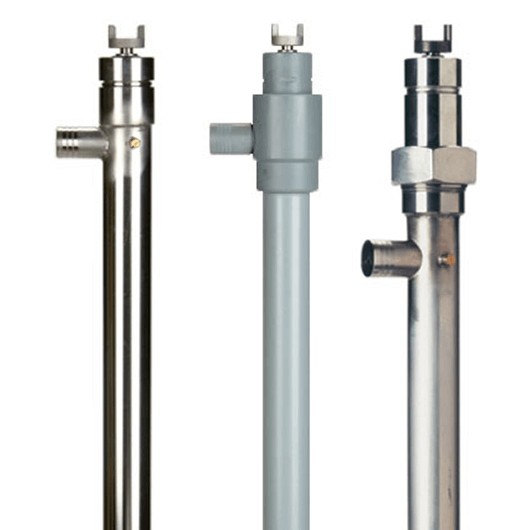

316 stainless steel or CPVC tube materials
Tubes interchangeable with motors
Up to 2000 cP with M6X air motor
FDA-compliant STTS option
FTI STTS 316 stainless steel or CPVC Drum Barrel Pumps Applications
Inks
Paints
Solvents
Sodium hypochlorite
Food & beverage
Pharmaceutical
FTI SFV Pure Polypropylene PVDF Drum Barrel Pumps Specifications
| Available Lengths | 40 in (102 cm) |
|---|---|
| Tube Diameter | 1-1/2 in (3.81 cm) |
| Discharge Size | 1 in (2.54 cm) |
| Discharge Types | Hose barb or tri-clamp |
| Hose Type | 1 in (2.54 cm) |
| Electric Motor | Air Motor | |
|---|---|---|
| Maximum Flow | 10 gpm (38 lpm) | 16 gpm (61 lpm) |
| Maximum Head | 10 ft (3 m) | 30 ft (9 m) |
| Maximum Specific Gravity | 1.8 | 1.8 |
| Maximum Viscosity | 50 cP | 2000 cP |
| Tube Material | FDA-compliant 316 stainless steel |
|---|---|
| Shaft Material | FDA-compliant 316 stainless steel |
| Spacer Materials | FDA-compliant FEP |
| Impeller/Compressor Material | FDA-compliant PTFE with stainless steel pin |
| Maximum Temperature | 150º F (66º C) |
| Minimum Temperature | -10º F (-23º C) |

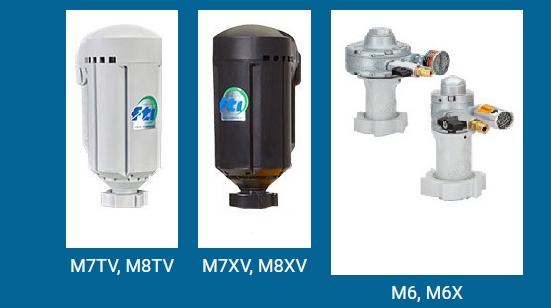

| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M7TV | QPS | 115V/60Hz | 450/250 | 0-6,000 | 50 cP |
| M8TV | CE | 230V/50-60Hz | 450/250 | 0-6,000 | 50 cP |
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M7XV* | QPS | 115V/60Hz | 450/250 | 0-6,000 | 50 cP |
| M8XV* | CE | 230V/50-60Hz | 450/250 | 0-6,000 | 50 cP |
* Variable speed
Air Motors*| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M6† | CE | 80-100psi@15-32 cfm | 400 | 300-9,000 | 1500 cP |
| M6X† | CE | 80-100psi@15-32 cfm | 600 | 300-6,000 | 2000 cP |
* An air motor is a non-electrical device meaning possibility of explosion from igniting flammables is reduced.
† Suitable for hazardous areas that do not require independent verification.
