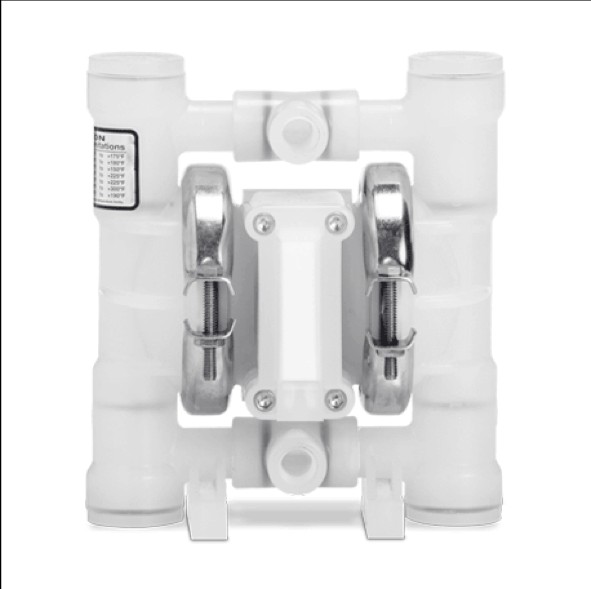

P.025/KKPPP/WFS/TF/KTV 00-9910 Wilden Pvdf Polypropylene Diaphragm Pump
P.025/KZPPP/TNL/TF/KTV Wilden Polypropylene Diaphragm Pump
| WILDEN Pump Description | P.025/KKPPP/WFS/TF/KTV |
|---|---|
| Item Number Pump | 00-9910 |
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NME |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Pvdf |
| Diaphragms | Wil-Flex |
| Valve/ Balls | Teflon |
| Valve Seats | Pvdf with Ptfe Encapsulated Viton |
| Outer Piston | Pvdf |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 4,1 |
| Pump Weight Kilo | 1 |
| Specialty Code | #N/A |
| P.025/AMLLL/BNS/TF/ABN |
| P.025/AMLLL/WFS/TF/ATF/0014 |
| P.025/AMPPP/BNS/TF/ABN |
| P.025/AMPPP/BNS/TF/ABN/0014 |
| P.025/AMPPP/WFS/TF/ATF |
| P.025/AMPPP/WFS/TF/ATF/0014 |
| P.025/AZLLL/TNL/TF/ATF |
| P.025/AZPPP/TEL/TF/ATF |
| P.025/AZPPP/TNL/TF/ATF |
| P.025/AZPPP/TNL/TF/ATF/0014 |
| P.025/KKPPP/BNS/TF/KBN |
| P.025/KKPPP/WFS/TF/KTV |
| P.025/KKPPP/WFS/TF/KWF |
| P.025/KKPPP/WFS/TF/KWF/0502 |
| P.025/KZPPP/TEL/TF/KTV |
| P.025/KZPPP/TNL/TF/KTV |
| P.025/KZPPP/TNL/TF/KTV/0310 |
| P.025/KZPPP/TNL/TF/KTV/0502 |
| P.025/PPPPP/BNS/TF/PBN |
| P.025/PPPPP/BNS/TF/PBN/0502 |
| P.025/PPPPP/EPS/TF/PTV |
| P.025/PPPPP/WFS/SS/PWF |
| P.025/PPPPP/WFS/TF/KTV |
| P.025/PPPPP/WFS/TF/KWF |
| P.025/PPPPP/WFS/TF/PTV |
| P.025/PPPPP/WFS/TF/PWF |
| P.025/PPPPP/WFS/TF/PWF/0502 |
| P.025/PZPPP/TEL/TF/PTV |
| P.025/PZPPP/TNL/TF/KTV |
| P.025/PZPPP/TNL/TF/KTV/0502 |
| P.025/PZPPP/TNL/TF/PTV |
| P.025/PZPPP/TNL/TF/PTV/0310 |
| P.025/PZPPP/TNL/TF/PTV/0502 |
| P.025/PZPPP/TNL/TF/PWF |
| P.025/SSPPP/BNS/TF/SBN |
| P.025/SSPPP/BNS/TF/SBN/0014 |
| P.025/SSPPP/WFS/TF/SWF |
| P.025/SSPPP/WFS/TF/SWF/0014 |
| P.025/SZLLL/TNL/TF/STV |
| P.025/SZLLL/TNL/TF/STV/0014 |
| P.025/SZPPP/TEL/TF/STV/0481 |
| P.025/SZPPP/TNL/TF/STV |
| P.025/SZPPP/TNL/TF/STV/0014 |
| P.025/SZPPP/TNL/TF/STV/0670 |
P.025/KZPPP/TN/KL/TF/KTV Wilton Diaphragm Pump:
Material of liquid contact:
Polypropylene transport weight: 1.4 kg (3 lbs);
Elastomer material:
Diaphragm material: Wil-FlexTM
Non-liquid-to-liquid material:
Intermediate part: polypropylene, acetal;
Air valve: polypropylene, acetal;
P.025/KZPPP/TN/KL/TF/KTV Wilton Diaphragm Pump Performance Parameters:
Media import dimensions: 1/4” (6 mm);
Media outlet dimensions: 1/4” (6 mm);
Air inlet size: 1/8” (3mm);
Maximum outlet pressure: 8.6 Bar (125 psig);
Maximum solid particle diameter can be passed: 1/64” (0.4 mm);
Maximum traffic:
Rubber/thermoplastic compound: 18.1 lpm (4.8 gpm);
Teflon PTFE: 18.1 lpm (4.8 gpm);
Maximum suction range:
Rubber/thermoplastic compounds: dry suction 3.1 m (10.0’), wet suction 9.5 m (31.0’);
Teflon PTFE: dry suction 2.4 m (8.0’), wet suction 8.8 m (29.0’);
