FTI TMS  316 stainless steel  Drum Barrel Pumps

TMS - Drum Mixer

Tube Material: 316 stainless steel

Max Circulation: 14 GPM (53 LPM)

Max Viscosity: 1500 cP

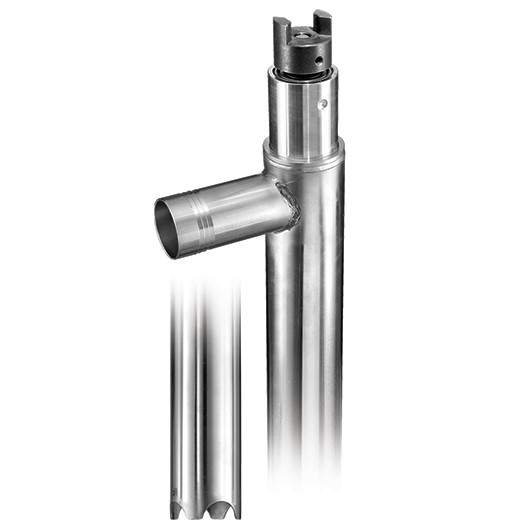

TM Series Drum/Barrel Pump Mixer

Drum/Barrel Pumps - TMS – Drum Mixer

The TM Series Drum Mixer is a 4-blade, turbine drum mixer ideal for mild corrosives, solvents, or flammables of light to medium viscosity.

FTI TMS  316 stainless steel  Drum Barrel Pumps  Applications

Dyes

Inks

Paints

Stains

Mild corrosives

Solvents & flammables

FTI TMS  316 stainless steel  Drum Barrel Pumps Specifications

Available Lengths	40 in (102 cm)
Tube Diameter	2 in (5.1 cm)
Tube Material	316 stainless steel
Shaft Material	316 stainless steel
Center Bearing Material	PTFE
Maximum Temperature	200º F (93º C)
Minimum Temperature	-20º F (-29º C)

	Electric Motor	Air Motor
Maximum Circulation	14 gpm (53 lpm)	14 gpm (53 lpm)
Maximum Specific Gravity	1.8	1.8
Maximum Viscosity	100 cP	1,500 cP

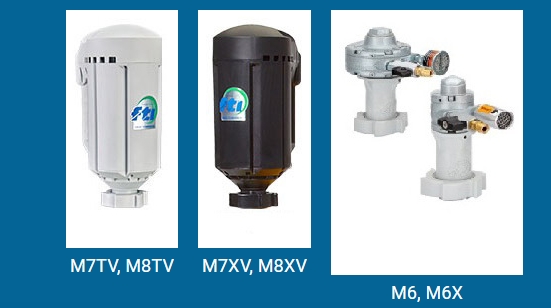

TEFC (Totally Enclosed Fan Cooled) Variable Speed IP55 Motors

TEFC (Totally Enclosed Fan Cooled) Variable Speed IP55 Motors

Model	Certifications	Requirements	Input/Output (W)	RPM	Maximum Viscosity
M7TV	QPS	115V/60Hz	450/250	0-6,000	100 cP
M8TV	CE	230V/50-60Hz	450/250	0-6,000	100 cP

Explosion Proof Motors

Explosion Proof Motors

Model	Certifications	Requirements	Input/Output (W)	RPM	Maximum Viscosity
M7XV	QPS	115V/60Hz	450/250	0-6,000	100 cP
M8XV	CE	230V/50-60Hz	450/250	0-6,000	100 cP

Air Motors*

Air Motors*†

Model	Certifications	Requirements	Input/Output (W)	RPM	Maximum Viscosity
M6†	CE	80-100psi@15-32 cfm	400	300-9,000	1000 cP
M6X†	CE	80-100psi@15-32 cfm	600	300-6,000	1500 cP

*† An air motor is a non-electrical device, reducing possibility of explosion from igniting flammables.
† Suitable for hazardous areas that do not require independent verification.
