P.025/SSPPP/BNS/TF/SBN 00-9731 WILDEN AODD Pump, Stainless Steel, 1/4" Pro-Flo
P.025/SSPPP/BNS/TF/SBN 00-9731 WILDEN AODD Pump, Stainless Steel, 1/4" Pro-Flo
AODD Pump, Stainless Steel, 1/4" Pro-Flo®, Clamped, Threaded, w/ Buna-N
Item: 00-9731
Description: P.025/SSPPP/BNS/TF/SBN
Key Specifications
discharge orientation: side right
inlet orientation: side right
discharge size (in.): 0.25
default max diameter solids (in.): 0.02
inlet size (in.): 0.25
max flow rate (gpm): 5.0
max diameter solids (in.): 0.02

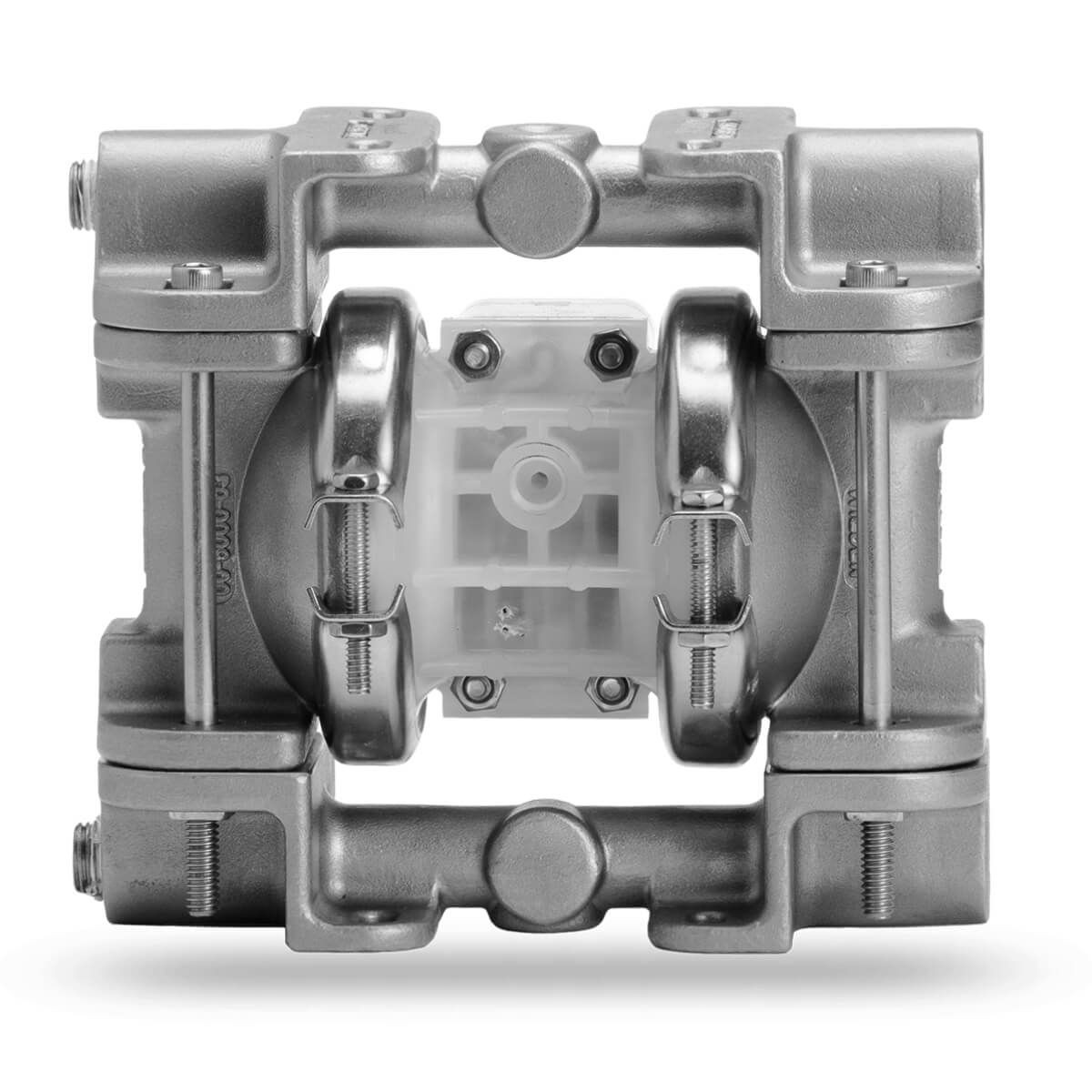

The Wilden® 00-9731, a 0.25" Pro-Flo® clamped AODD pump built from Stainless Steel with Buna-N diaphragms and PTFE ball valves, delivers up to 5 GPM at 125 PSI across fluid transfer systems. The traditional full-stroke diaphragm design ensures reliablity and robustness in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT side-right inlet and threaded NPT side-right discharge, effective in a broad range of applications across industrial and commercial markets. CE|UKCA certified.
| WILDEN Pump Description | P.025/SSPPP/BNS/TF/SBN |
|---|---|
| Item Number Pump | 00-9731 |
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NME |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Stainless Steel |
| Diaphragms | Buna-N |
| Valve/ Balls | Teflon |
| Valve Seats | SS Seat with Buna-N O-Ring |
| Outer Piston | Stainless Steel |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 10,7 |
| Pump Weight Kilo | 4 |
| Specialty Code | #N/A |
