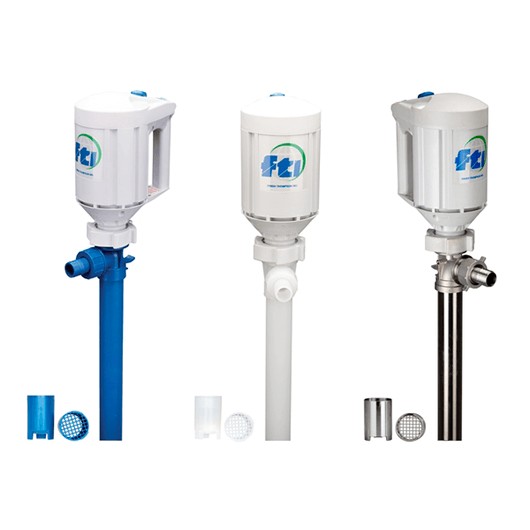

SFV Drum Pump
Tube Material: Pure Polypropylene, PVDF
Max Flow: 37 gpm (140 lpm)
Max Head: 50 ft (15 m)
SF Series Drum/Barrel Pumps
Drum/Barrel Pumps - SFV Drum Pump
Dual impeller options provides either high flow or high head with 40mm tube diameter for smaller bung openings.
Featuring multiple material options and connections, the SF Series is designed for container-to-container transfer of acids, corrosives, and chemicals.
FTI SFV Pure Polypropylene PVDF Drum Barrel Pumps Features:
Pure Polypropylene/PVDF tube
Interchangeable with motors
Integral strainer on high-flow versions
Up to 1200 cP
Built-in hose and cord clips
FTI SFV Pure Polypropylene PVDF Drum Barrel Pumps Applications
Acids
Bases
Water treatment chemicals
Cleaners
Plating solutions
Kidney dialysis solutions
DEF/AdBlue (diesel exhaust fluid)
FTI SFV Pure Polypropylene PVDF Drum Barrel Pumps Specifications
| Available Lengths | 27, 40, 48, 54, 60, 72 in (69, 102, 122, 137, 152, 183 cm) |
|---|---|
| Tube Diameter | 1.6 in (4.0 cm) |
| Discharge Size | 1 in (2.54 cm) |
| Discharge Type | Hose barb |
| Hose Size | 1 in (2.54 cm) |
| High Flow Impeller | Electric Motor | Air Motor |
|---|---|---|
| Maximum Flow | 37 gpm (140 lpm) | 31 gpm (117 lpm) |
| Maximum Head | 50 ft (15 m) | 32 ft (10 m) |
| Maximum Specific Gravity | 1.84 | 2.0 |
| Maximum Viscosity | 1000 cP | 1200 cP |
| High Head Impeller | Electric Motor | Air Motor |
|---|---|---|
| Maximum Flow | 24 gpm (91 lpm) | 20 gpm (76 lpm) |
| Maximum Head | 83 ft (25 m) | 62 ft (19 m) |
| Maximum Specific Gravity | 2.0 | 2.0 |
| Maximum Viscosity | 1200 cP | 1200 cP |
| Tube Material | Pure Polypropylene, PVDF |
|---|---|
| Shaft Material | Alloy 625 |
| O-ring Mateial | FKM |
| Impeller Material | ETFE |
| Maximum Temperature | 175º F (79º C) |
| Minimum Temperature | 35º F (1.7º C) |
| *SFV54(-H), SFV60(-H), SFV72(-H) 140º F (60ºC) Maximum Temperature | |

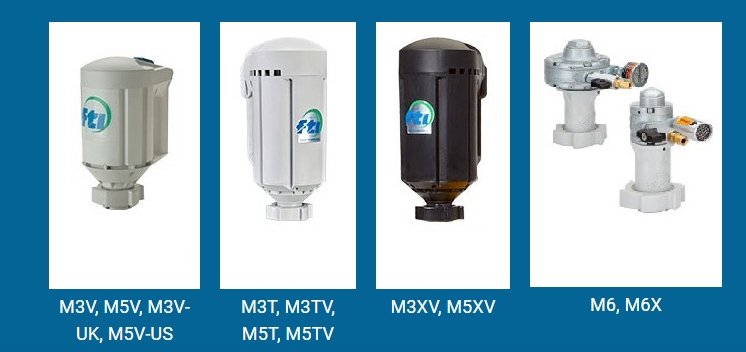

ODP (Open Drip Proof), Splashproof, IP24 Variable Speed Motors
ODP (Open Drip Proof), Splashproof, IP24 Variable Speed Motors| Model | Certifications | Requirements | Input/Output (W) | RPM | High Flow/High Head Maximum Viscosity |
|---|---|---|---|---|---|
| M3V | QPS | 115V/50-60Hz | 650/400 | 3,500-10,000 | 1000 cP/1200 cP |
| M5V | CE | 230V/50-60Hz | 650/400 | 3,500-10,000 | 1000 cP/1200 cP |
| M5V-US* | CE | 230V/50-60Hz | 650/400 | 3,500-10,000 | 1000 cP/1200 cP |
| M3V-UK | CE | 115V/50-60Hz | 650/400 | 3,500-10,000 | 1000 cP/1200 cP |
*Suitable for 230V, 60 Hz. Includes NEMA 6-15 plug
TEFC (Totally Enclosed Fan Cooled) IP55 Motors| Model | Certifications | Requirements | Input/Output (W) | RPM | High Flow/High Head Maximum Viscosity |
|---|---|---|---|---|---|
| M3T | QPS | 115V/60Hz | 1000/680 | 12,000 | 800 cP/ 1200 cP |
| M5T | CE | 230V/50-60Hz | 1000/680 | 12,000 | 1000 cP/ 1200 cP |
| M3TV | QPS | 115V/60Hz | 1000/680 | 0-12,000 | 800 cP/ 1200 cP |
| M5TV | CE | 230V/50-60Hz | 1000/680 | 0-12,000 | 1000 cP/ 1200 cP |
| Model | Certifications | Requirements | Input/Output (W) | RPM | High Flow/High Head Maximum Viscosity |
|---|---|---|---|---|---|
| M3XV | QPS | 115V/60Hz | 1000/680 | 0-12,000 | 1000 cP/ 1200 cP |
| M5XV | CE | 230V/50-60Hz | 1000/680 | 0-12,000 | 1000 cP/ 1200 cP |
| M5XV-HT | CE | 230V/50-60Hz | 1000/680 | 0-12,000 | 1000 cP/ 1200 cP |
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M6† | CE | 80-100psi@15-32 cfm | 400 | 300-9,000 | 1200 cP |
An air motor is a non-electrical device meaning possibility of explosion from igniting flammables is reduced.
