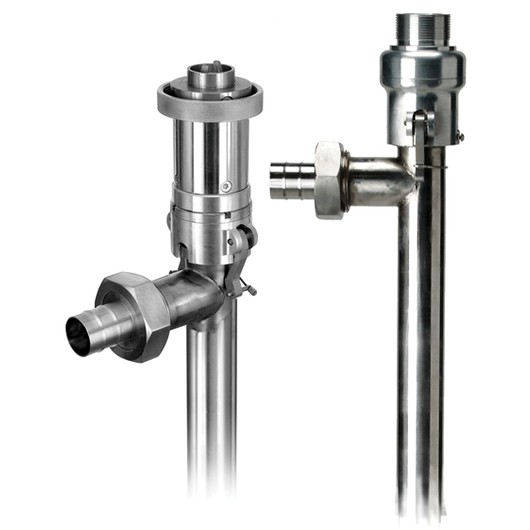

HVDP-LR Drum Pumps
Tube Material: 316 stainless steel
Maximum Head: 300 ft (91 m)
Maximum Flow: 7 gpm (27 lpm)
Maximum Viscosity: 100,000 cP
HVDP Series Drum/Barrel Pumps
Drum/Barrel Pumps - HVDP-LR Drum Pumps
This progressive cavity, positive displacement-style pump can handle viscous fluids up to 100,000 centipoise!
The heavy duty HVDP offers multiple mechanical seal choices and materials options for ultimate compatibility.
Choose from the HR model (up to 20,000 cP) or the LR model (up to 100,000 cP).
FTI HVDP-LR 316 stainless steel Drum Barrel Pumps Features include:
Unique camlock feature for quick disassembly
Optional foot design for drums with liners
FDA-compliant options
Bellows Type 21 mechanical seal
FTI HVDP-LR 316 stainless steel Drum Barrel Pumps Applications
Waxes
Oils
Resins
Solvents
Adhesives
Silicone
Lotions
Honey
Juice concentrate
Hair & bath gel
Corn syrup
FTI HVDP-LR 316 stainless steel Drum Barrel Pumps Specifications
| Available Lengths | 27, 40, 48 in (69, 102, 122 cm) |
|---|---|
| Tube Diameter | 2 in (5.1 cm) |
| Discharge Size | 1-1/2 in (3.8 cm) or 2 in (5.1 cm) |
| Discharge Types | Hose barb or tri-clamp |
| Hose Type | 1-1/2 in (3.8 cm) or 2 in (5.1 cm) |
| Electric Motor | Air Motor | |
|---|---|---|
| Maximum Flow | 7 gpm (27 lpm) | 7 gpm (27 lpm) |
| Maximum Head | 300 ft (91 m) | 300 ft (91 m) |
| Maximum Specific Gravity | 1.8 | 1.8 |
| Maximum Viscosity | 100,000 cP | 100,000 cP |
| Tube Material | 316 stainless steel |
|---|---|
| Shaft Material | 316 stainless steel |
| Stator Materials | Buna, FKM, or PTFE |
| Seal Materials | Carbon, Ceramic, FKM, EPDM, SiC, Buna, or Kalrez® |
| O-ring Materials | Buna, FKM, EPDM, or PTFE encapsulated silicone |
| Maximum Temperature | 180º F (82º C) |
| Minimum Temperature | -20º F (-29º C) |

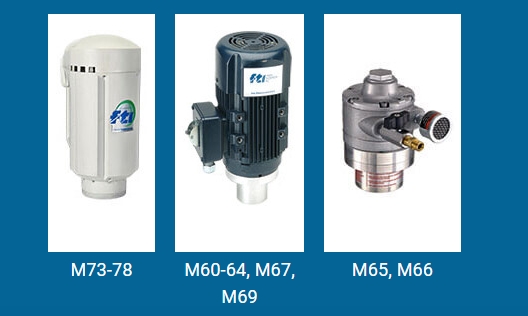

| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M60 | * | 115/230V/60 Hz/1 Ph | **/0.75 | 3450 | 15,000 cP |
| M61 | * | 115/230V/60 Hz/1 Ph | **/1.1 | 3450 | 30,000 cP |
| M62 | * | 115/230V/60 Hz/1 Ph | **/1.5 | 3450 | 100,000 cP |
| M63 | * | 230/460V/50/60Hz/3 Ph | **/0.75 | 2850/3450 | 15,000 cP |
| M64 | * | 230/460V/50/60Hz/3 Ph | **/1.5 | 2850/3450 | 100,000 cP |
* Carries independent testing laboratory approval.
** Input power for induction motors will vary by manufacturer.
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M72 | CE | 230/460V/50/60Hz/3 Ph | **/1.5 | 2850/3450 | 100,000 cP |
* Carries independent testing laboratory approval.
** Input power for induction motors will vary by manufacturer.
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M65 | CE | 100psi@25 cfm | 0.55 | 300-3,000 | 15,000 cP |
| M66 | CE | 100psi@25 cfm | 1.1 | 300-3,000 | 100,000 cP |
* An air motor is a non-electrical device meaning possibility of explosion from igniting flammables is reduced.
† Suitable for hazardous areas that do not require independent verification.
