BTS Drum Pumps
Tube Material: 316 stainless steel
Max Flow: 10 gpm (38 lpm)
Max Head: 200 ft (61 m)
BT Series Drum/Barrel Pumps
Drum/Barrel Pumps - BTS Drum Pumps

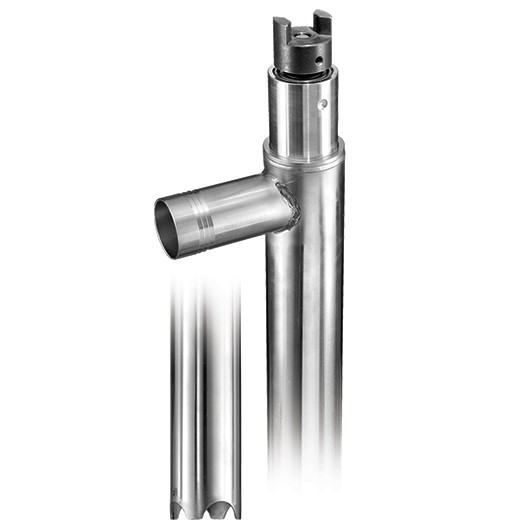

This stainless steel model with sealed design is made with PTFE screw-type lifting compressors to handle liquids with higher viscosities.
FTI BTS 316 stainless steel Drum Barrel Pumps Applications
Oils
Resins
Solvents
Adhesives
Polymers
Gear lube
Glycerin
FTI BTS 316 stainless steel Drum Barrel Pumps Specifications
| Available Lengths | 40 in (102 cm) |
|---|---|
| Tube Diameter | 2 in (5.1 cm) |
| Discharge Size | 1-1/2 in (3.8 cm) |
| Discharge Type | Hose Barb, MNPT, or Tri-Clamp |
| Hose Size | 1-1/2 in (3.8 cm) |
| Electric Motor | Air Motor | |
|---|---|---|
| Maximum Flow | 10 gpm (38 lpm) | 10 gpm (38 lpm) |
| Maximum Head | 200 ft (61 m) | 200 ft (61 m) |
| Maximum Specific Gravity | 1.8 | 1.8 |
| Maximum Viscosity | 15,000 cP | 15,000 cP |
| Tube Material | 316 stainless steel |
|---|---|
| Shaft Material | 316 stainless steel |
| Spacer Material | FEP |
| Compressor Material | PTFE with stainless steel pin |
| Maximum Temperature | 200º F (93º C) |
| Minimum Temperature | -20º F (-29º C) |

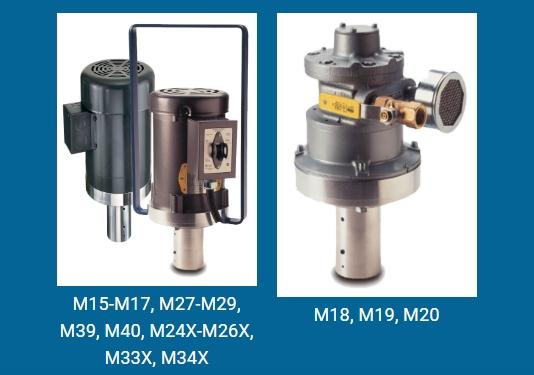

| Model | Certifications | Requirements | Output (kW) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M15 | * | 230-460V/60Hz | 0.75 | 3450 | 800 cP |
| M16 | * | 230-460V/60Hz | 1.1 | 1725 | 7,000 cP |
| M17 | * | 230-460V/60Hz | 2.2 | 1725 | 15,000 cP |
| M27 | * | 115-230V/60Hz | 0.75 | 3450 | 800 cP |
| M28 | * | 115-230V/50-60Hz | 1.5 | 1725 | 7,000 cP |
| M29 | * | 115-230V/50-60Hz | 2.5 | 1725 | 15,000 cP |
| M39 | * | 220380-440V/50-60Hz | 0.75 | 2850 | 1,000 cP |
| M40 | * | 220-380-440V/50-60Hz | 1.5 | 1425 | 8,500 cP |
* Carries independent testing laboratory approval.
** Input power for induction motors will vary by manufacturer.
| Model | Certifications | Requirements | Output (kW) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M33X | * | 115-230V/60Hz | 0.75 | 3450 | 800 cP |
| M34X | * | 115-230V/60Hz | 1.5 | 1725 | 7,000 cP |
| M24X | * | 230-460V/60Hz | 0.75 | 3450 | 800 cP |
| M25X | * | 230-460V/50-60Hz | 1.5 | 1450/1725 | 7,000 cP |
| M26X | * | 230-460V/50-60Hz | 2.2 | 1450/1725 | 15,000 cP |
* Carries independent testing laboratory approval.
** Input power for induction motors will vary by manufacturer.
| Model | Certifications | Requirements | Output (kW) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M18 | CE | 100psi@14-70 cfm | 0.75 | 300-3,000 | 800 cP |
| M19 | CE | 100psi@80-120 cfm | 1.5 | 300-3,000 | 7,000 cP |
| M20 | CE | 100psi@120-170 cfm | 2.5 | 300-2,500 | 15,000 cP |
† An air motor is a non-electrical device, reducing possibility of explosion from igniting flammables.
*Suitable for hazardous areas that do not require independent verification.
