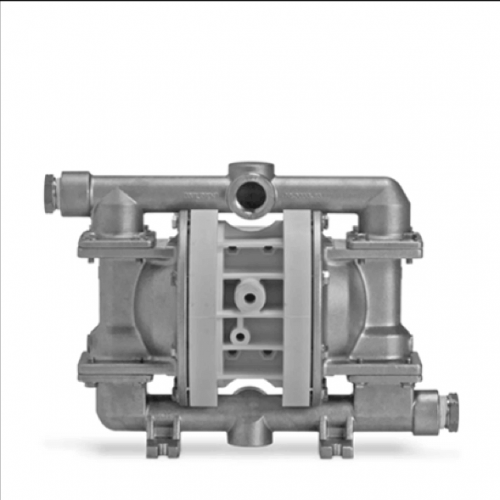

WLDEN  P2 Metal Clutch Pneumatic Diaphragm Pump

WLDEN   P2 Metal Clutch Pneumatic Diaphragm Pump Specifications:

Material of liquid contact:

316 stainless steel Transport weight: 16 kg (36 lbs)

Elastomer material:

Saniflex™, Teflon PTFE

Material of liquid contact:

Middle part: polypropylene, acetal

Air valve: polypropylene, acetal

Performance parameters:

Media import dimensions: 1” (25 mm)

Media outlet dimensions: 3/4” (19 mm)

Air inlet size: 1/4” (6 mm)

Maximum outlet pressure: 8.6 Bar (125 psig)

Maximum solid particle diameter can be passed: 1/8” (3.2 mm)

Maximum traffic:

Rubber/thermoplastic compound: 170 lpm (45 gpm)

Teflon PTFE: 163 lpm (43 gpm)

Maximum suction range:

Rubber/thermoplastic compounds

Dry suction 5.8 m (19.0’)

Wet suck 8.5 m (28.0’)

Teflon PTFE

Dry suction 3.0 m (10.0’)

Wet suck 8.5 m (28.0’)
