PFV Drum Pumps
Tube Material: PVDF
Max Flow: 40 gpm (151 lpm)
Max Head: 80 ft (24 m)
PF Series Drum/Barrel Pumps
Drum/Barrel Pumps - PFV Drum Pumps
Unique double suction impeller provides high flow and high head.
Featuring multiple material options and connections, the PF Series is designed for container-to-container transfer of acids, corrosives, and chemicals.
FTI PFV PVDF Drum Barrel Pumps Features include:

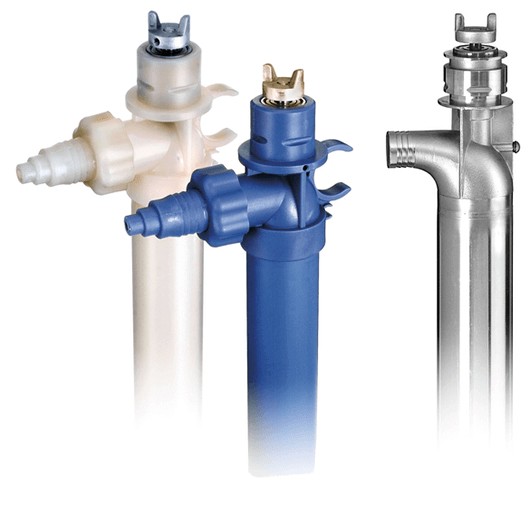

Polypropylene, PVDF, or 316SS tubes
Interchangeable with motors
Greater flow control with variable orifice discharge
Up to 2000 cP
FDA-compliant option
Built-in hose and cord clips
FTI PFV PVDF Drum Barrel Pumps Applications
Acids
Bases
Solvents
Water treatment chemicals
Cleaners
Plating solutions
Kidney dialysis solutions
DEF/AdBlue (diesel exhaust fluid)
| Available Lengths | 27, 40, 48, 54, 60, 72 in (69, 102, 122, 137, 152, 183 cm) |
|---|---|
| Tube Diameter | 2 in (5.1 cm) |
| Discharge Size | 1 in (2.54 cm) |
| Discharge Type | Hose barb w/ variable orifice |
| Hose Size | 1 in (2.54 cm) |
| Electric Motor | Air Motor | |
|---|---|---|
| Maximum Flow | 40 gpm (151 lpm) | 22 gpm (83 lpm) |
| Maximum Head | 80 ft (24 m) | 38 ft (11.6 m) |
| Maximum Specific Gravity | 1.8 | 1.8 |
| Maximum Viscosity | 2000 cP | 330 cP |
| Tube Material | PVDF |
|---|---|
| Shaft Material | Alloy 625 |
| O-ring Mateial | FKM |
| Impeller Material | PVDF |
| Maximum Temperature* | 120º F (49º C) |
| Minimum Temperature | 35º F (1.7º C) |
| *PFV-72 maximum temperature is 115º F (46º C) | |

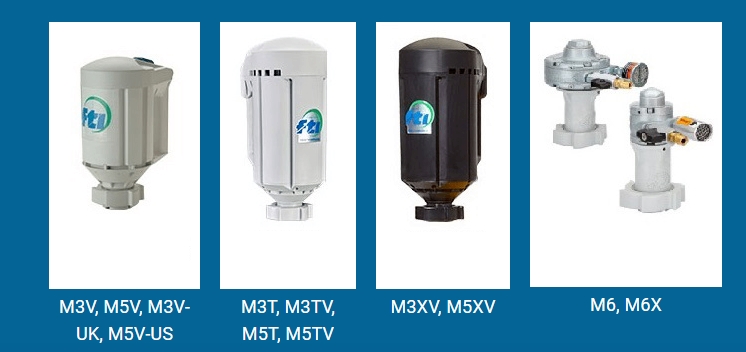

ODP (Open Drip Proof), Splashproof, IP24 Variable Speed Motors
ODP (Open Drip Proof), Splashproof, IP24 Variable Speed Motors| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M3V | QPS | 115V/50-60Hz | 650/400 | 3,500-10,000 | 500 cP |
| M5V | CE | 230V/50-60Hz | 650/400 | 3,500-10,000 | 500 cP |
| M5V-US* | CE | 230V/50-60Hz | 650/400 | 3,500-10,000 | 500 cP |
| M3V-UK | CE | 115V/50-60Hz | 650/400 | 3,500-10,000 | 500 cP |
*Suitable for 230V, 60 Hz. Includes NEMA 6-15 plug
TEFC (Totally Enclosed Fan Cooled) IP55 Motors
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M3T | QPS | 115V/60Hz | 1000/680 | 12,000 | 1,000 cP |
| M5T | CE | 230V/50-60Hz | 1000/680 | 12,000 | 1,000 cP |
| M3TV | QPS | 115V/60Hz | 1000/680 | 0-12,000** | 2,000 cP |
| M5TV | CE | 230V/50-60Hz | 1000/680 | 0-12,000** | 2,000 cP |
** Variable Speed
Explosion Proof Motors| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M3XV | QPS | 115V/60Hz | 1000/680 | 0-12,000** | 2,000 cP |
| M5XV† | CE | 230V/50-60Hz | 1000/680 | 0-12,000** | 2,000 cP |
** Variable speed
† ATEX certified option available. Contact factory for more information.
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M6† | CE | 80-100psi@15-32 cfm | 400 | 300-9,000 | 330 cP |
| M6X* | CE | 80-100psi@15-32 cfm | 600 | 300-6,000 | 330 cP |
* An air motor is a non-electrical device meaning possibility of explosion from igniting flammables is reduced.
† ATEX certified option available. Contact factory for more information.
