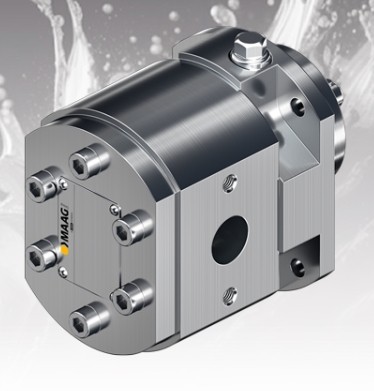

The MAAG flexinox™ is a corrosion-resistant conveying device that meets the stringent quality requirements

of today's chemical processing industry. Its three-piece construction facilitates maintenance and replacement

 of internal parts, such as gears and bearings. The pump can be heated electrically or liquid-heated. With a

wide range of components and materials available, MAAG gear pumps can be configured to meet specific

customer requirements, significantly exceeding standard gear pumps in terms of performance and reliability.

The MAAG FQ "Quick Clean" version has been released for production facilities that require constant cleaning

and purging of conveyor lines at the end of each batch, for example, when using different colors or additives.

The pump can be quickly disassembled without removing the drive shaft from the drive motor and seals.

This feature can also be added to existing pump series with the optional FQ kit, or the FQ model can be selected directly.

The FQ version allows changes in production and maintenance methods without compromising desired operating

characteristics. It offers high flexibility and functionality, and is easy to maintain and replace parts.

Suitable for

Polymer Production

Pump Solutions (Industrial/Chemical Applications)

Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.

MAAG gear pumps Corrosion-resistant chemical transfer pumps flexinox  for the chemica Advantages

Wide viscosity, temperature, and pressure range; Application-tailored clearance for increased efficiency; Precise

 flow control; Self-priming capability; Excellent corrosion resistance; High reliability and long service life; Safe

and easy replacement of internal parts

Typical pumpable media (EN)

Organic and inorganic chemicals; Solvents; Acids and alkalis; Latex; Sludge and condensate; Prepolymers,

oligomers, and monomers (PAN); Additives; Resins; Cellulose derivatives and pulp; Silicone resins; Waxes

and paraffins; Cosmetics; Pharmaceutical products; Food extracts and flavorings; Gum bases; Vegetable

and animal fats and oils; Sulfur

MAAG gear pumps Corrosion-resistant chemical transfer pumps flexinox  for the chemica Certifications (EN)

ATEX certificate

3.1 material certification

Performance test certificate

MAAG gear pumps Corrosion-resistant chemical transfer pumps flexinox  for the chemica Options

Bidirectional operation

Special modifications for demanding applications

Customizable

Technical Data

Speed [rpm] max. 3,000

Differential pressure [bar] max. 100

Viscosity (mPas) 0.3–500,000

Temperature °C -30–320

Output l/min 0.4–139

Housing * Stainless steel * Hastelloy

Gear shaft * Stainless steel * Iron and aluminum * Hastelloy * Ceramic SSiC * High-tech polymer (upon request)

* Titanium (upon request)

Shaft seal * Single or double mechanical seal * Single or double balanced mechanical seal * Lip seal and

gland packing * Seal rings available in a variety of materials * Sealing or heating medium connections

 available * Single or double shell magnetic coupling

Connections: SAE, CETOP, DIN, and ANSI flanges

Pump heating * Electrical pump heating available upon request * Integrated channels for heating/cooling with steam or liquid
