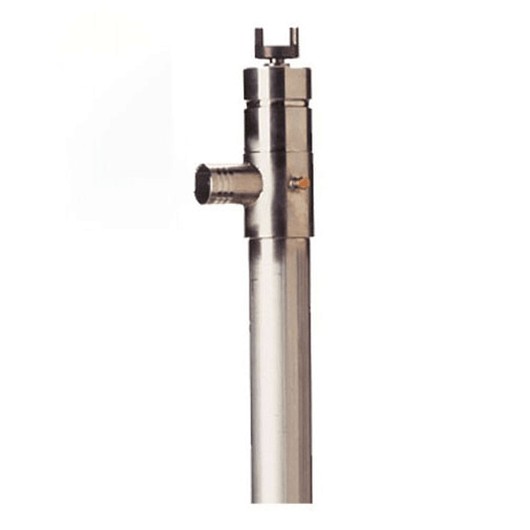

FTI TBS 316 stainless steel Drum Barrel Pumps
FTI TBS 316 stainless steel Drum Barrel Pumps
TBS Drum Pumps
Tube Material: 316 stainless steel
Max Flow: 20 gpm (75.7 lpm)
Max Head: 28 ft (8.53 m)
TB Series Drum/Barrel Pumps
Drum/Barrel Pumps - TBS Drum Pumps
Lightweight pumps suitable for low to medium viscosity mild corrosives, solvents, and chemicals.
FTI TBS 316 stainless steel Drum Barrel Pumps Applications
Light acids and bases
Solvents
FTI TBS 316 stainless steel Drum Barrel Pumps Specifications
| Available Lengths | 40 in (102 cm) |
|---|---|
| Tube Diameter | 1-1/2 in (3.8 cm) |
| Discharge Size | 1 in (2.54 cm) |
| Discharge Type | Hose Barb |
| Hose Size | 1 in (2.54 cm) |
| Maximum Temperature | 150º F (66º C) |
| Minimum Temperature | -20º F (-29º C) |
| Electric Motor | Air Motor | |
|---|---|---|
| Maximum Flow | 20 gpm (75.7 lpm) | 15 gpm (57 lpm) |
| Maximum Head | 28 ft (8.53 m) | 16 ft (4.9 m) |
| Maximum Specific Gravity | 1.4 | 1.4 |
| Maximum Viscosity | 200 cP | 200 cP |
| Tube Material | 316 stainless steel |
|---|---|
| Shaft Material | 316 stainless steel |
| Spacer Material | FEP |
| Compressor Material | PTFE with stainless steel pin |

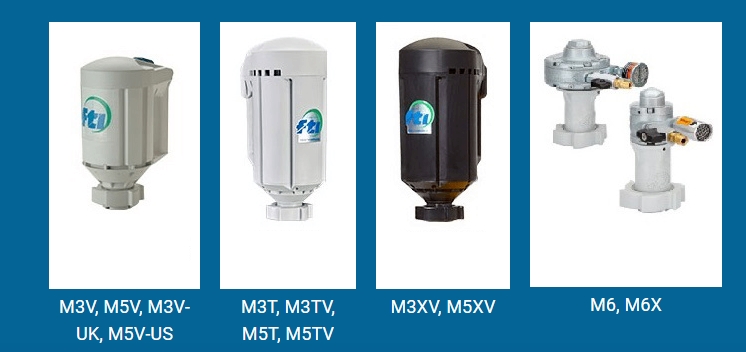

ODP (Open Drip Proof), Splashproof, IP24 Variable Speed Motors
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M3V | QPS | 115V/50-60Hz | 650/400 | 3,500-10,000 | 200 cP |
| M5V | CE | 230V/50-60Hz | 650/400 | 3,500-10,000 | 200 cP |
| M5V-US | CE | 230V/50-60Hz | 650/400 | 3,500-10,000 | 200 cP |
| M3V-UK | CE | 115V/50-60Hz | 650/400 | 3,500-10,000 | 200 cP |
*Suitable for 230V, 60 Hz. Includes NEMA 6-15 plug
TEFC (Totally Enclosed Fan Cooled) IP55 Motors
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M3T | QPS | 115V/60Hz | 1000/680 | 12,000 | 200 cP |
| M5T | CE | 230V/50-60Hz | 1000/680 | 12,000 | 200 cP |
| M3TV | QPS | 115V/60Hz | 1000/680 | 0-12,000** | 200 cP |
| M5TV | CE | 230V/50-60Hz | 1000/680 | 0-12,000** | 200 cP |
Explosion Proof Motors
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M3XV | QPS | 115V/60Hz | 1000/680 | 0-12,000** | 200 cP |
| M5XV | CE | 230V/50-60Hz | 1000/680 | 0-12,000** | 200 cP |
**Variable speed
Air Motors*
| Model | Certifications | Requirements | Input/Output (W) | RPM | Maximum Viscosity |
|---|---|---|---|---|---|
| M6 | CE | 80-100psi@15-32 cfm | 400 | 300-9,000 | 1000 cP |
| M6X | CE | 80-100psi@15-32 cfm | 600 | 300-6,000 | 1000 cP |
*† An air motor is a non-electrical device meaning possibility of explosion from igniting flammables is reduced.
