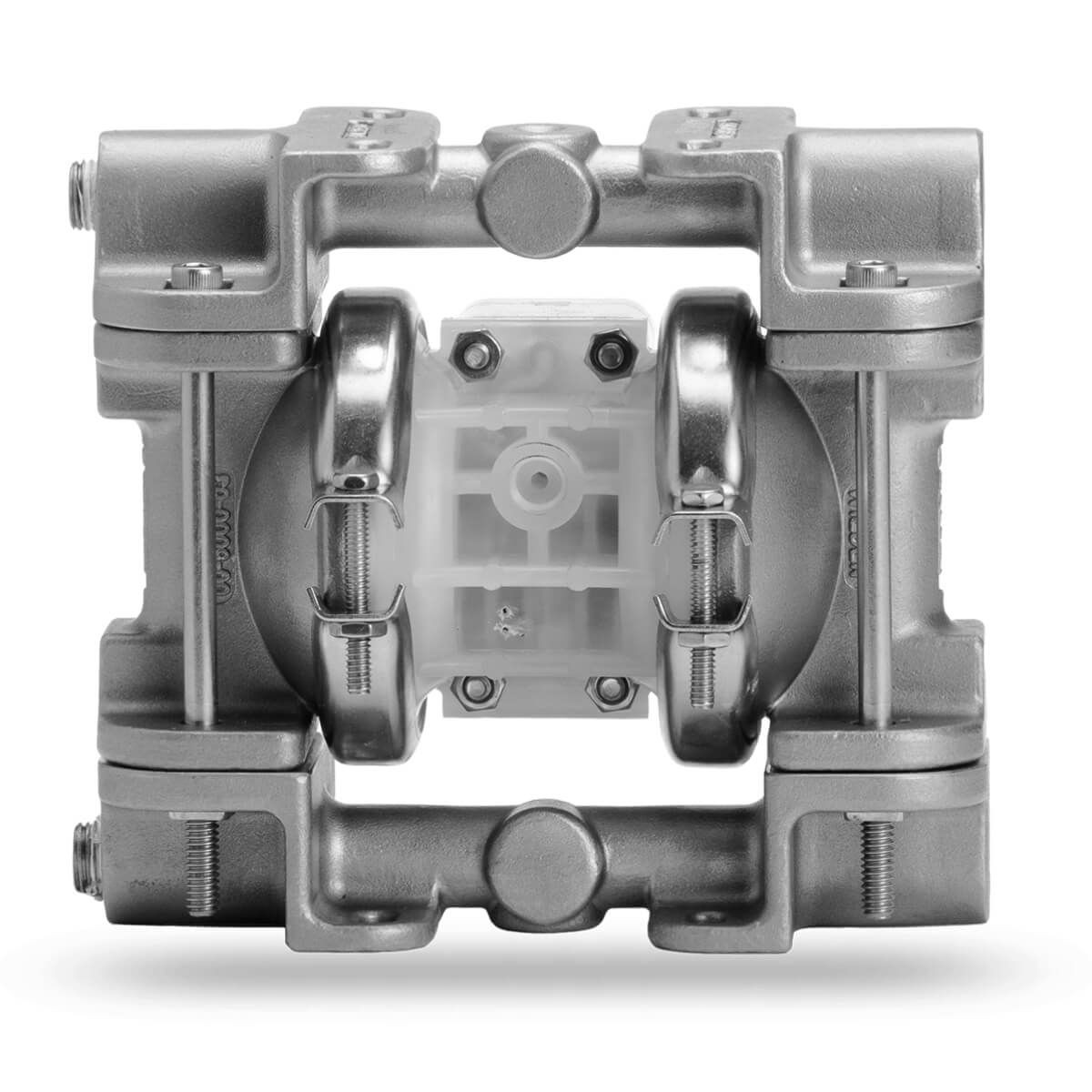

AODD Pump, Aluminum, 1/4" Pro-Flo®, Clamped, Threaded, w/ Santoprene
The Wilden® 00-9729-R, a 0.25" Pro-Flo® clamped AODD pump built from Aluminum with Santoprene® diaphragms and PTFE ball valves, delivers up to 5 GPM at 125 PSI across fluid transfer systems. The traditional full-stroke diaphragm design ensures durablity and reliability in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT side-right inlet and threaded NPT side-right discharge, chosen by operators in different sectors for its versatility and consistent output. CE|UKCA certified.
| WILDEN Pump Description | P.025/AMPPP/WFS/TF/ATF |
|---|---|
| Item Number Pump | 00-9729 |
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NME |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Aluminum |
| Diaphragms | Wil-Flex |
| Valve/ Balls | Teflon |
| Valve Seats | Aluminum with Teflon O-Ring |
| Outer Piston | Mild steel |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 6,3 |
| Pump Weight Kilo | 2 |
| Specialty Code | #N/A |
AODD Pump, Aluminum, 1/4" Pro-Flo®, Clamped, Threaded, w/ Santoprene®
Item: 00-9729-R
Description: P.025/AMPPP/WFS/TF/ATF
Key Specifications
Discharge Orientation: SIDE RIGHT
Inlet Orientation: SIDE RIGHT
Discharge Size (in.): 0.25
Default Max Diameter Solids (in.): 0.02
Inlet Size (in.): 0.25
Max Flow Rate (gpm): 5.0
Max Diameter Solids (in.): 0.02
Spare Parts
Item Overview for Wilden® 01-6400-03
The Wilden 01-6400-03, a Hex Nut (10-24), Stainless Steel 01-6400-03 Hardware design ensures precision-engineered and reliability.
01-6100-03: Screw, Hex Head Cap Screw
Item: 01-6100-03
Description: Screw, Hex Head Cap Screw (10-24 X 1 1/2), Stainless Steel
01-6000-03: Screw, Socket Head Cap Screw
Item: 01-6000-03
Description: Screw, Socket Head Cap Screw (1/4-20 X 4 1/2), Stainless Steel
00-7010-03: Pipe Plug
Item: 00-7010-03
Description: Pipe Plug (1/4" NPT), Stainless Steel
00-6800-08: Washer, Disc Spring
Item: 00-6800-08
Description: Washer, Disc Spring (.264 X .374), Steel
00-6505-03: Nut, Square
Item: 00-6505-03
Description: Nut, Square (1/4-20), Stainless Steel
00-5050-03: Combo (Inlet Or Discharge) Manifold for ¼" Stainless Steel Pumps
Item: 00-5050-03
Description: Combo (Inlet Or Discharge) Manifold for ¼" NPT Threaded Stainless Steel Clamped Pumps
Key Specifications
Fluid Connection Inlet Size: 0.25
00-5000-03: Liquid Chamber for ¼" Stainless Steel Pumps
Item: 00-5000-03
Description: Liquid Chamber for ¼" Stainless Steel Clamped Pumps
00-4570-03: Outer Piston for ¼" Stainless Steel
Item: 00-4570-03
Description: Outer Piston for ¼" Stainless Steel Rubber/TPE/PTFE Diaphragm Fitted Pumps
00-3700-20-700: Inner Piston for ¼" Polypropylene
Item: 00-3700-20-700
Description: Inner Piston for ¼" Polypropylene Rubber/TPE/PTFE Diaphragm Fitted Pumps
00-1370-55: Wetted Path O-ring in Ptfe
Item: 00-1370-55
Description: Wetted Path O-ring in Ptfe (0.984" ID × 0.139" W)
00-1200-58: Wetted Path O-ring in Santoprene
Item: 00-1200-58
Description: Wetted Path O-ring in Santoprene (0.549" ID × 0.103" W)
00-1120-03: Valve Seat for ¼" Pumps, Stainless Steel
Item: 00-1120-03
Description: Valve Seat in Stainless Steel for ¼" Pumps
00-1080-55: Valve Ball for ¼" Pumps, Ptfe
Item: 00-1080-55
Description: Valve Ball in Ptfe for ¼" Pumps
00-1010-58: Diaphragm for 1/4" pumps, Santoprene®
Item: 00-1010-58
Description: Traditional Santoprene® (WFS) diaphragm for 1/4" pumps
