PS25/PPPPP/ZWS/TF/PEP 00-10191 AODD Pump Polypropylene  1/4" Bolted

Item Overiew for Wilden® 00-10191

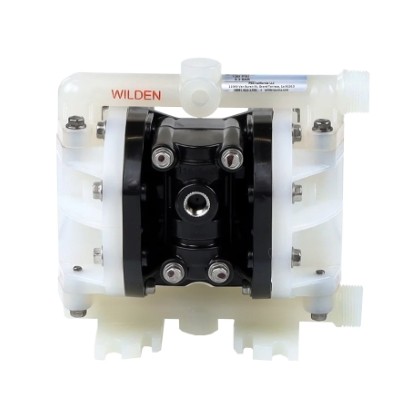

The Wilden® 00-10191, a 0.25" Pro-Flo® SHIFT bolted AODD pump built from Polypropylene with Santoprene® diaphragms and PTFE ball valves, delivers up to 5.7 GPM at 120 PSI across fluid transfer systems. The EZ-Install full-stroke diaphragm design ensures versatility and toughness in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT side-right inlet and threaded NPT side-right discharge, applicable to a broad spectrum of material handling and transfer requirements. CE|UKCA certified.

AODD Pump, Polypropylene, 1/4" Pro-Flo® SHIFT, Bolted, Threaded, w/ Santoprene®

Item: 00-10191

Description: PS25/PPPPP/ZWS/TF/PEP

Key Specifications

discharge orientation: side right

inlet orientation: side right

discharge size (in.): 0.25

default max diameter solids (in.): 0.06

max flow rate (gpm): 5.7

inlet size (in.): 0.25

max diameter solids (in.): 0.06

Model (in.):

0.25

Technical Construction:

BOLTED

Wetted Path Material:

POLYPROPYLENE

Diaphragm Material:

Santoprene®

Diaphragm Design:

EZ-INSTALL

Diaphragm Stroke:

Full-Stroke

Connection Standard:

NPT

Inlet Size (in.):

0.25

Inlet Orientation:

SIDE RIGHT

Discharge Size (in.):

0.25

Discharge Orientation:

SIDE RIGHT

Outer Piston Materials:

POLYPROPYLENE

Air Side Material:

POLYPROPYLENE

Valve Material:

PTFE

Valve Type:

VALVE BALL

Valve Seat MATERIAL:

POLYPROPYLENE

O Rings Gasket Material:

EPDM

Hardware Material:

STAINLESS STEEL

Muffler Material:

Plastic

Self Priming:

YES
