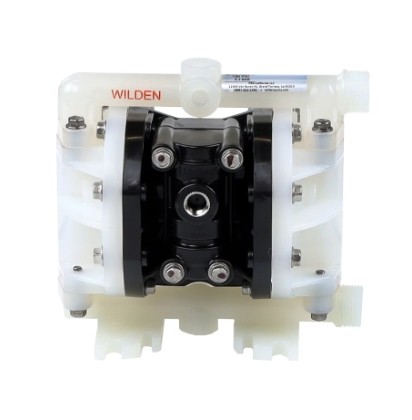

00-10197  PS25/PPPPP/ZWS/WF/PTF AODD Pump Polypropylene 1/4" SHIFT Bolted Threaded

Key Specifications

discharge orientation: side right

inlet orientation: side right

discharge size (in.): 0.25

default max diameter solids (in.): 0.06

max flow rate (gpm): 5.7

inlet size (in.): 0.25

max diameter solids (in.): 0.06

Item Overiew for Wilden® 00-10197

The Wilden® 00-10197, a 0.25" Pro-Flo® SHIFT bolted AODD pump built from Polypropylene with Santoprene® diaphragms and Santoprene® ball valves, delivers up to 5.7 GPM at 120 PSI across fluid transfer systems. The EZ-Install full-stroke diaphragm design ensures durablity and sustainability in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT side-right inlet and threaded NPT side-right discharge, commonly used across numerous sectors thanks to its dependable design. CE|UKCA certified.

Attributes for item 00-10197

Model (in.):

0.25

Technical Construction:

BOLTED

Wetted Path Material:

POLYPROPYLENE

Diaphragm Material:

Santoprene®

Diaphragm Design:

EZ-INSTALL

Diaphragm Stroke:

Full-Stroke

Connection Standard:

NPT

Inlet Size (in.):

0.25

Inlet Orientation:

SIDE RIGHT

Discharge Size (in.):

0.25

Discharge Orientation:

SIDE RIGHT

Outer Piston Materials:

POLYPROPYLENE

Air Side Material:

POLYPROPYLENE

Valve Material:

Santoprene®

Valve Type:

VALVE BALL

Valve Seat MATERIAL:

POLYPROPYLENE

O Rings Gasket Material:

PTFE

Hardware Material:

STAINLESS STEEL

Muffler Material:

Plastic

Self Priming:

YES
