00-9602 P.025/KKPPP/BNS/TF/KBN AODD Pump Threaded Buna-N PVDF 1/4"
00-9602 P.025/KKPPP/BNS/TF/KBN AODD Pump Threaded Buna-N PVDF 1/4"

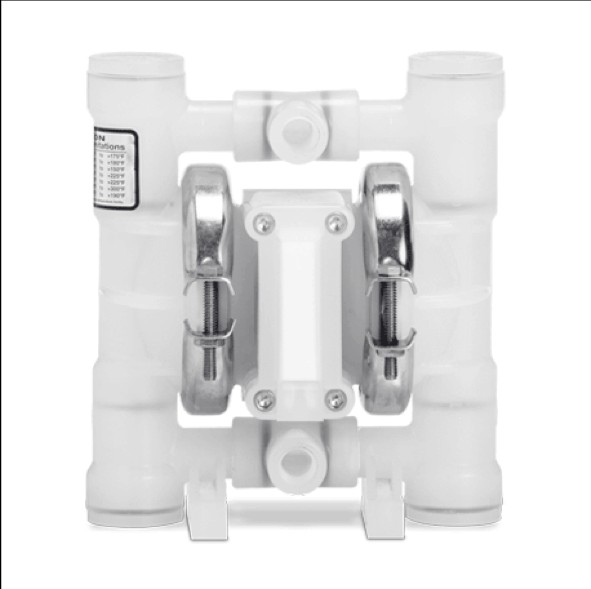

The Wilden® 00-9602, a 0.25" Pro-Flo® clamped AODD pump built from PVDF with Buna-N diaphragms and PTFE ball valves, delivers up to 4.8 GPM at 125 PSI across fluid transfer systems. The traditional full-stroke diaphragm design ensures versatility and sustainability in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT center-swivel inlet and threaded NPT center-swivel discharge, this pump is well-suited for a wide range of industrial and commercial operations. CE|UKCA certified.
| WILDEN Pump Description | P.025/KKPPP/BNS/TF/KBN |
|---|---|
| Item Number Pump | 00-9602 |
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NME |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Pvdf |
| Diaphragms | Buna-N |
| Valve/ Balls | Teflon |
| Valve Seats | Pvdf with Buna-N O-Ring |
| Outer Piston | Pvdf |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 4,1 |
| Pump Weight Kilo | 1 |
| Specialty Code | #N/A |
| P.025/AZPPP/TNL/TF/ATF |
| P.025/AMPPP/WFS/TF/ATF |
| P.025/AMPPP/BNS/TF/ABN |
| P.025/AMPPP/BNS/TF/ABN/0014 |
| P.025/AMPPP/WFS/TF/ATF/0014 |
| P.025/AZPPP/TNL/TF/ATF/0014 |
| P.025/AZLLL/TNL/TF/ATF |
| P.025/AMLLL/BNS/TF/ABN |
| P.025/AMLLL/WFS/TF/ATF/0014 |
| XP.025/AZPPP/TEL/TF/ATF/0014 |
| P.025/AZPPP/TEL/TF/ATF |
| P.025/KZPPP/TNL/TF/KTV/0310 |
| P.025/KKPPP/BNS/TF/KBN |
| P.025/KZPPP/TNL/TF/KTV |
| P.025/KZPPP/TNL/TF/KTV/0502 |
| P.025/KKPPP/WFS/TF/KWF |
| P.025/KKPPP/WFS/TF/KWF/0502 |
| P.025/KKPPP/WFS/TF/KTV |
| P.025/KZPPP/TEL/TF/KTV |
| P.025/PZPPP/TNL/TF/PTV/0310 |
| P.025/PZPPP/TNL/TF/KTV/0502 |
| P.025/PPPPP/EPS/TF/PTV |
| P.025/PPPPP/WFS/SS/PWF |
| P.025/PZPPP/TEL/TF/PTV |
| P.025/PPPPP/BNS/TF/PBN |
| P.025/PPPPP/BNS/TF/PBN/0502 |
| P.025/PZPPP/TNL/TF/PTV/0502 |
| P.025/PPPPP/WFS/TF/PWF |
| P.025/PPPPP/WFS/TF/PWF/0502 |
| P.025/PPPPP/WFS/TF/PTV |
| P.025/PZPPP/TNL/TF/PTV |
| P.025/PPPPP/WFS/TF/KWF |
| P.025/PPPPP/WFS/TF/KTV |
| P.025/PZPPP/TNL/TF/KTV |
| P.025/PZPPP/TNL/TF/PWF |
| XP.025/SZPPP/TEL/TF/STV/0670 |
| XP.025/SSLLL/WFS/TF/SWF |
| P.025/SZPPP/TEL/TF/STV/0481 |
| XP.025/SZLLL/TNL/TF/STV/0670 |
| P.025/SSPPP/BNS/TF/SBN |
| P.025/SZPPP/TNL/TF/STV |
| P.025/SSPPP/BNS/TF/SBN/0014 |
| P.025/SSPPP/WFS/TF/SWF/0014 |
| P.025/SZPPP/TNL/TF/STV/0014 |
| P.025/SZLLL/TNL/TF/STV |
| P.025/SZLLL/TNL/TF/STV/0014 |
| P.025/SZPPP/TNL/TF/STV/0670 |
| P.025/SSPPP/WFS/TF/SWF |
| XP.025/SZPPP/TEL/TF/STV/0014 |
| XP.025/SZPPP/TEL/TF/STV |
