00-9606 P.025/KKPPP/WFS/TF/KWF AODD Pump PVDF 1/4" Clamped Threaded
00-9606 P.025/KKPPP/WFS/TF/KWF AODD Pump PVDF 1/4" Clamped Threaded
Item Overiew for Wilden® 00-9606

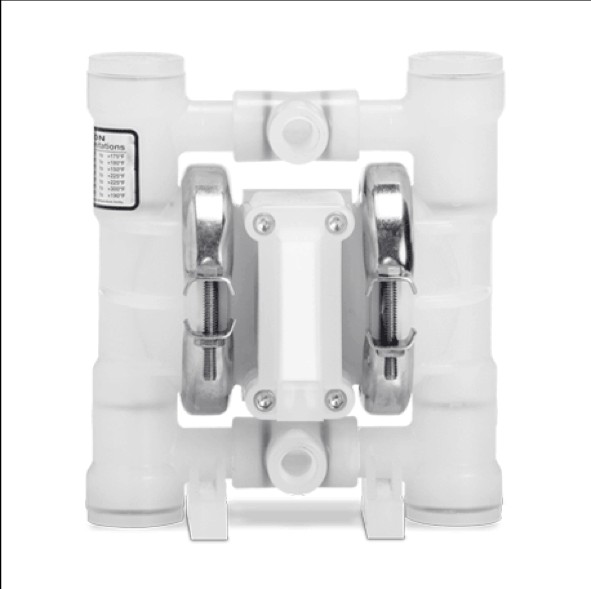

The Wilden® 00-9606, a 0.25" Pro-Flo® clamped AODD pump built from PVDF with Santoprene® diaphragms and PTFE ball valves, delivers up to 4.8 GPM at 125 PSI across fluid transfer systems. The traditional full-stroke diaphragm design ensures consistency and longevity in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT center-swivel inlet and threaded NPT center-swivel discharge, often chosen for is versatility in addressing the needs of diverse operational contexts. CE|UKCA certified.
| WILDEN Pump Description | P.025/KKPPP/WFS/TF/KWF |
|---|---|
| Item Number Pump | 00-9606 |
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NME |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Pvdf |
| Diaphragms | Wil-Flex |
| Valve/ Balls | Teflon |
| Valve Seats | Pvdf with Wil-Flex O-Ring |
| Outer Piston | Pvdf |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 4,1 |
| Pump Weight Kilo | 1 |
| Specialty Code | #N/A |
