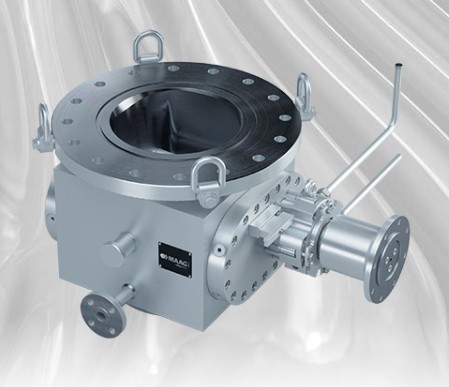

MAAG Gear Pumps Polymer Extraction and Transfer Pumps for Polymer Applications - VISCOREX VR

Polymer processing in the polymer industry requires systems for the gentle discharge of low-viscosity and

high-viscosity plastic melts from reactors and vacuum degassing systems. MAAG polymer extraction pump

systems and VISCOREX transfer gear pumps, with their excellent filling performance and short residence times,

are the ideal solution for these polymer applications. Higher efficiency and a longer service life increase the

capacity and utilization of polymer production lines. VISCOREX transfer gear pumps efficiently convey plastic

melts at a constant, precise flow rate.

Applicable to

Polymer Production

Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.

MAAG Gear Pumps Polymer Extraction and Transfer Pumps for Polymer Applications - VISCOREX VR  Advantages

Optimized inlet geometry ensures excellent filling performance. Optimized flow channels. Special gear teeth provide

 low extrusion forces for gentle processing of polymer melts. Higher overall efficiency and low friction. Pioneering

gear and bearing technology. Low-pulsation pumping at high differential pressures. Compact design.

MAAG Gear Pumps Polymer Extraction and Transfer Pumps for Polymer Applications - VISCOREX VR Typical Pumping Media (EN):

Cellulose acetate

Elastomers

Epoxy resins

Phenolic resins

Polyacrylonitrile

Polyamides

Polycarbonates

Polybutylene terephthalate

Polyethylene terephthalate

Polymethyl methacrylate

Polypropylene

Polystyrene (including ABS, EPS)

Polysulfones

Silicone resins

Styrene-butadiene latex

Others

Paints and varnishes

Waxes and paraffins

Mineral oils and fats

Fuels

Petrochemicals

Lubricants

MAAG Gear Pumps Polymer Extraction and Transfer Pumps for Polymer Applications - VISCOREX VR  Technical Data

Speed [rpm] max. 100

Torque (Nm) max. 409,600

Differential pressure [bar] max. 70

Viscosity (Pas) max. 20,000

Temperature °C max. 350

Output l/min max. 600

Housing Cast steel/corrosion-resistant steel

Gear shaft: Nitrided steel

Shaft seal: * Heated single mechanical seal * Double mechanical seal * Vislip * Vispac * Threaded seal

Pump heating: Maximum heat transfer medium temperature 350°C, maximum pressure 12 bar for models

 larger than 14 inches (maximum pressure 7 bar for 10-, 12-, and 14-inch models)

Installation: Viscorex gear pumps can be flange-mounted directly below the reactor.
