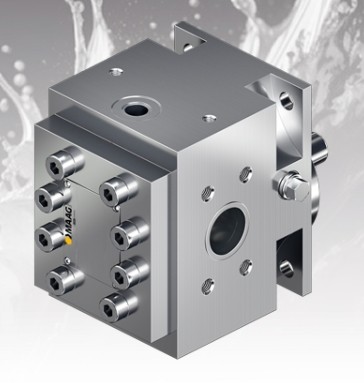

MAAG gear pumps for chemicals and polymers Stainless steel reactor discharge pumps CINOX-V THERMINOX-V

The CINOX-V and THERMINOX-V polymer extraction pumps are discharge pumps designed for highly viscous fluids.

They enable slow extraction from reactors and vacuum exhaust systems, even at low inlet pressures, ensuring excellent

filling characteristics and short residence times during polymer production. This new polymer pump series combines

excellent flow characteristics with the stringent requirements of the chemical industry.

Suitable for

Polymer Production

Hot Melt Adhesives (HMAs)

Pump Solutions (Industrial/Chemical Applications)

Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.

MAAG gear pumps for chemicals and polymers Stainless steel reactor discharge pumps CINOX-V THERMINOX-V Advantages

Good filling characteristics due to an enlarged inlet and optimized inlet geometry. Low pulsation, application-specific

clearances for increased efficiency, reliability, long service life, and safety.

MAAG gear pumps for chemicals and polymers Stainless steel reactor discharge pumps CINOX-V THERMINOX-V

Typical Pumping Media (EN)

Organic and Inorganic Chemicals

Solvents

Acids and Alkalis

Latexes

Sludge and Condensate

Prepolymers, Oligomers, and Monomers (PAN)

Additives

Resins

Cellulose Derivatives and Pulp

Silicone Resins

Waxes and Paraffin Waxes

Cosmetics

Pharmaceuticals

Food Extracts and Flavorings

Gum Bases

Animal and Vegetable Oils and Fats

Molten Sulfur

MAAG gear pumps for chemicals and polymers Stainless steel reactor discharge pumps CINOX-V THERMINOX-V Certifications (EN)

ATEX 3.1 Certificate

German Air Quality Certificate (TA-Luft)

Performance Test Certificate

MAAG gear pumps for chemicals and polymers Stainless steel reactor discharge pumps CINOX-V THERMINOX-V Options

Heated Seal

Bidirectional Operation

Special Modifications for Demanding Applications

MAAG gear pumps for chemicals and polymers Stainless steel reactor discharge pumps CINOX-V THERMINOX-V Technical Data

Speed [rpm] Max. 3,000

Differential Pressure [bar] Max. 200

Viscosity (mPas) 0.3–4,000,000

Temperature °C -30–320

Output l/min 0.1–2,400

Housing *Stainless Steel * Hastelloy

Gear shafts * Stainless steel * Iron, aluminum * Hastelloy * Ceramic, SSiC * High-tech polymers (upon request)

* Titanium (upon request)

Shaft seals * Single or double mechanical seals * Single or double mechanical balanced seals * Lip seals and

gland packings * Seal rings available in various materials * Sealing or heating medium connections available *

 Single or double shell electromagnetic couplings

Connections: SAE, CETOP, DIN, and ANSI flanges

Pump heating * Cinox® with optional electric heating cartridges * Therminox® with optional integrated channels

for heating/cooling via steam or liquid
