MAAG Gear Pumps Polymer Compounding Corrosion-Resistant Chemical Transfer Gear Pumps Cinox Therminox

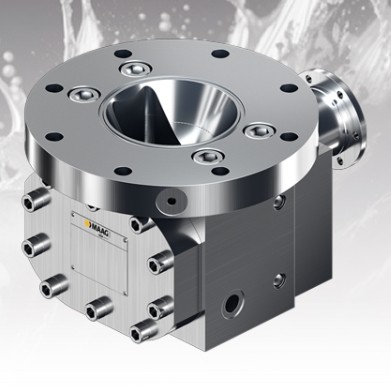

The Cinox and Therminox chemical transfer gear pumps are corrosion-resistant, heatable stainless steel

 pumps designed to meet the stringent quality requirements of today's chemical processing industry.

Whether the application involves high-purity, corrosive, viscous, or high-temperature media, MAAG

polymer production pump systems can solve every pumping challenge. The Cinox and Therminox

pumps are particularly well-suited for medium- to high-flow applications.

Suitable for

Polymer Production

Pump Solutions (Industrial/Chemical Applications)

Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.

MAAG Gear Pumps Polymer Compounding Corrosion-Resistant Chemical Transfer Gear Pumps Cinox Therminox Advantages

Wide viscosity, temperature, and pressure ranges; High efficiency (tolerances vary depending on application);

Precise displacement volume; Self-priming; Corrosion-resistant; Reliable; Long service life; Safe

MAAG Gear Pumps Polymer Compounding Corrosion-Resistant Chemical Transfer Gear Pumps Cinox Therminox

Various typical pumpable media (EN)

Prepolymers, oligomers, and monomers

Coatings

Spandex

Resins

Adhesives

Silicone

Wax and paraffin waxes

Emulsifiers

Gum base

Certifications (EN)

ATEX certificate

3.1 certificate

German air quality certificate (TA-Luft)

Performance test certificate

Optional

Electrical heating

Heated product flange

MAAG Gear Pumps Polymer Compounding Corrosion-Resistant Chemical Transfer Gear Pumps Cinox Therminox Technical Data

Speed [rpm] max. 1,500

Differential pressure [bar] max. 200

Viscosity (mPas) 0.3 – 4,000,000

Temperature °C -30 – 320

Output l/min 2.5 – 265

Housing: Stainless steel

Gear shaft: Stainless steel

Shaft seal: * Double mechanical seal

Interlock or heater connection optional

Seal rings available in various materials

Gland gland throttling (optionally spring-loaded)

Connections Flange (other options) ANSI, DIN
