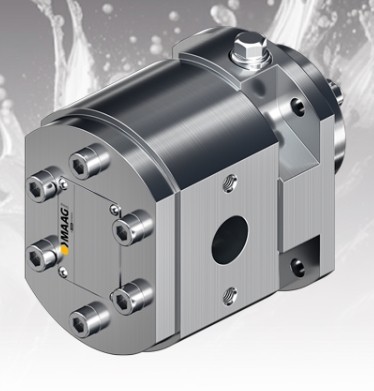

MAAG Gear Pumps Corrosion-Resistant Metering Pumps for Chemical Processes dosix™ Pumps

MAAG metering gear pumps are corrosion-resistant, electrically heated pumps ideal for small flow rates.

 Their three-piece construction facilitates maintenance and replacement of internal parts, such as gears

and bearings. With a wide range of components and materials available, dosix™ pumps can be configured

to meet specific customer requirements, significantly exceeding the performance and reliability of standard gear pumps.

Suitable for

Polymer Production

Pump Solutions (Industrial/Chemical Applications)

Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.

MAAG Gear Pumps Corrosion-Resistant Metering Pumps for Chemical Processes dosix™ Pumps  Typical Pumped Media (EN)

Organic and Inorganic Chemicals

Solvents

Acids and Alkalis

Additives

Cosmetics

Pharmaceuticals

Food Extracts and Flavorings

MAAG Gear Pumps Corrosion-Resistant Metering Pumps for Chemical Processes dosix™ Pumps Certifications (EN)

ATEX Certificate

3.1 Material Approval

Performance Test Certificate

MAAG Gear Pumps Corrosion-Resistant Metering Pumps for Chemical Processes dosix™ Pumps  Options

Bidirectional Operation

Special Modifications for Demanding Applications

Customizable

MAAG Gear Pumps Corrosion-Resistant Metering Pumps for Chemical Processes dosix™ Pumps  Technical Data

Speed [rpm] Max. 3,000

Differential Pressure [bar] Max. 100

Viscosity (mPas) 0.3 – 500,000

Temperature -30 – 320

Output 0.05 – 12 l/min

Housing * Stainless Steel * Hastelloy

Gear Shaft * Stainless Steel * Iron/Aluminum * Hastelloy * Ceramic SSiC * High-Tech Polymer (upon request) * Titanium (upon request)

Shaft Seal * Single or Double Mechanical Seal * Lip Seal and Gland Seal * Single or Double Shell Magnetic Seal Coupling

Pump Heating * Electrically Heated Pump Casing Available upon Request
