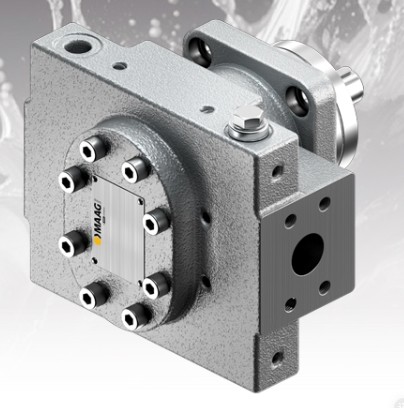

MAAG Gear Pumps Corrosion-Resistant Metering Pumps for Chemical Processes dosix™ Pumps

Refining and industrial equipment applications are demanding. High process pressures and temperatures

are commonplace in these environments. It is precisely in these environments that MAAG gear pumps reach

their full potential. Thanks to a wide range of components and materials, MAAG gear pumps can be configured

 to meet customer-specific requirements, significantly exceeding the performance and reliability of standard external gear pumps.

Suitable for

Polymer Production

Pump Solutions (Industrial/Chemical Applications)

Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.

MAAG Gear Pumps Corrosion-Resistant Metering Pumps for Chemical Processes dosix™ Pumps  Advantages

Wide viscosity, temperature, and pressure range; High efficiency (tolerances and small gaps are modified depending

on the application); Precise displacement volume; Self-priming; Reliable; Long service life.

Various typical pumpable media (EN):

Latex; Sludge and condensate; Additives; Resins; Cellulose derivatives and pulp; Silicone; Adhesives and hot melts;

Paints and varnishes; Waxes and paraffins; Fertilizers; Mineral oils and fats; Fuels; Petrochemicals

MAAG Gear Pumps Corrosion-Resistant Metering Pumps for Chemical Processes dosix™ Pumps Certifications (EN):

ATEX 3.1 certificate; German air quality certificate (TA-Luft); Performance test certificate

MAAG Gear Pumps Corrosion-Resistant Metering Pumps for Chemical Processes dosix™ Pumps Options:

Electric heating; Heated seals; Bidirectional operation; Special modifications for demanding applications

MAAG Gear Pumps Corrosion-Resistant Metering Pumps for Chemical Processes dosix™ Pumps  Technical Data:

Speed [rpm] max. 3,000

Differential pressure [bar] max. 300

Viscosity (mPas) 0.3–4,000,000

Temperature °C -30–320

Output l/min 0.5–1,750

Housing: Cast steel

Gear shaft: Stainless steel Nitrided steel (spur and spiral) * Nitrided steel coating

Shaft seal * Lip seal and packing * Single or double mechanical seal * External mechanical seal * Sealing or heating

 medium connection available * Single or double shell electromagnetic coupling

Pump heating * Refinex optional heating cartridge for electrical heating * Refitherm optional integrated channels

 for steam or liquid heating/cooling
