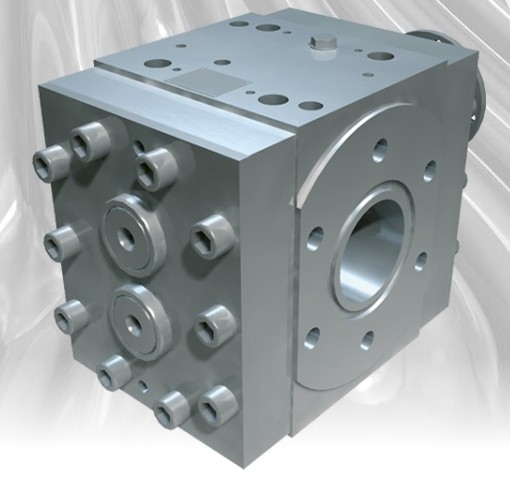

MAAG gear pump liquid oligomer special polymer delivery pump THERMOREX TRO/TRP

Polymer processing and polymer applications require polymer transfer pumps that must continuously and reliably convey oligomers and prepolymers through the system. Liquid polymer pumps are ideally suited for low-viscosity applications. With THERMOREX TRP and TRO, reactor pressurization is no longer necessary. Higher efficiency and a longer service life increase the productivity of MAAG polymer transfer pumps.

Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.

MAAG gear pump liquid oligomer special polymer delivery pump THERMOREX TRO/TRP Advantages

Optimized flow path, efficient self-cleaning properties, low-pulsation pumping at high differential pressures, compact design,

gentle pressure rise, minimal temperature rise, leak-free operation (depending on compound sensitivity)

MAAG gear pump liquid oligomer special polymer delivery pump THERMOREX TRO/TRP Typical pumpable media (EN)

Butadiene rubber

Chloroprene rubber

Ethylene-propylene-terpolymer rubber

Nitrile rubber

Styrene-butadiene rubber

Natural rubber

Other (on request)

Options

Differential tolerances

Application-specific material selection

Shaft cooling with contact protection

Bearing lubrication with internal recirculation

MAAG gear pump liquid oligomer special polymer delivery pump THERMOREX TRO/TRP Technical Data

Differential pressure [bar] extrex RV: max. 250 | extrex RB: max. 350

Viscosity (Pas) max. 30,000

Temperature °C max. 130

Housing: Alloy steel

Gear shaft: Nitrided tool steel, prepared for shaft cooling

Shaft seal: Alloy steel

Pump heating: Liquid temperature control
