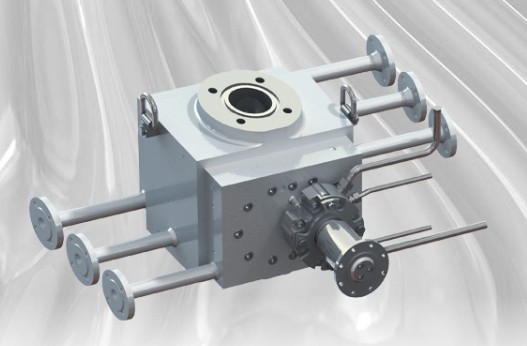

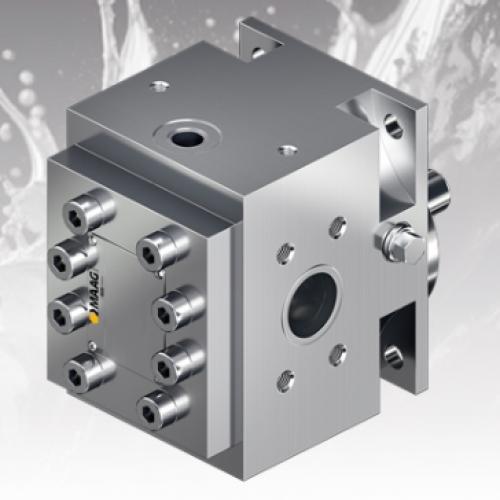

MAAG gear pump liquid oligomer special polymer delivery pump THERMOREX TRO/TRP

Polymer processing and polymer applications require polymer transfer pumps that must continuously and reliably convey oligomers and prepolymers through the system. Liquid polymer pumps are ideally suited for low-viscosity applications. With THERMOREX TRP and TRO, reactor pressurization is no longer necessary. Higher efficiency and a longer service life increase the productivity of MAAG polymer transfer pumps.

Your ideal partner, innovative in traditional technology to meet the demands of chemical and industrial processes, demands tailor-made solutions and adaptable products. With pumps manufactured from modular components, Maag has found a way to combine attractive price points with short delivery times. Achieving this level of performance exemplifies the progressive thinking that has characterized our corporate culture since its inception. Another benefit of modularity is that all components are field-proven for reliable, long-term operation. Our global service network provides expert technical advice to ensure uninterrupted machine operation. Whatever your process requirements, whether involving pressure, temperature, or viscosity, a Maag pump system is the right choice.

MAAG gear pump liquid oligomer special polymer delivery pump THERMOREX TRO/TRP Advantages

Optimized inlet geometry ensures excellent filling performance. Optimized flow path is fully heated. Pioneering gear and bearing technology improves overall efficiency and reduces friction. Low-pulsation pumping at high differential pressures. Compact design.

MAAG gear pump liquid oligomer special polymer delivery pump THERMOREX TRO/TRP Typical pumping media (EN)

Cellulose acetate

Elastomers

Epoxy resins

Phenolic resins

Polyacrylonitrile

Polyamides

Polycarbonates

Polybutylene terephthalate

Polyethylene terephthalate

Polymethyl methacrylate

Polypropylene

Polystyrene (including ABS, EPS)

Polysulfones

Silicone resins

Styrene-butadiene latex

Others

Paints and varnishes

Waxes and paraffins

Mineral oils and fats

Fuels

Petrochemicals

Lubricants

MAAG gear pump liquid oligomer special polymer delivery pump THERMOREX TRO/TRP Technical Data

Speed [rpm] 760

Differential pressure [bar] 160

Viscosity (Pas) TRO: Max. 5, TRP: Max. 60

Temperature °C 350

Output l/min 550

Housing: Stainless steel

Gear shaft: Tool steel/special materials

Shaft seal * Stuffing box for oligomer applications: Vispac * Heated single mechanical seal * Double mechanical seal with barrier system (vislip) * Magnetic coupling

Pump heating: Oil heating: Maximum temperature 350°C; Maximum pressure: 15 bar; Saturated or superheated steam: Maximum pressure: 40 bar

Installation: Thermorex TRO/TRP gear pumps can be directly flange-mounted as transfer pumps below the reactor or installed in series.
