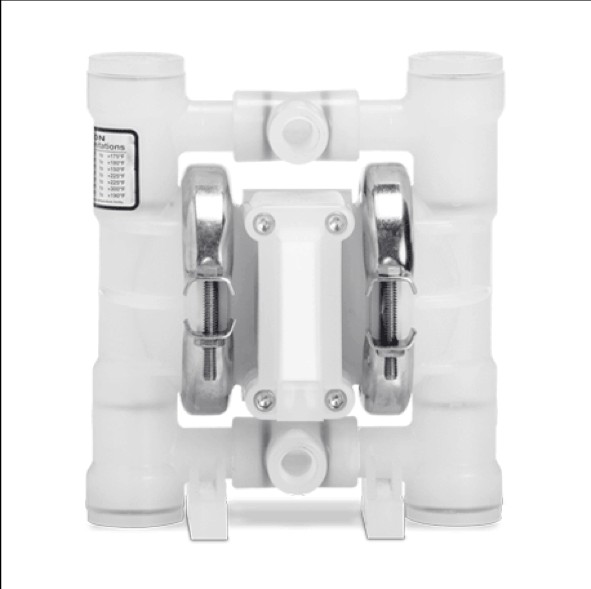

AODD Pump, Polypropylene, 1/4" Pro-Flo®, Clamped, Threaded, w/ PTFE
Item: 00-9930
Description: P.025/PZPPP/TNL/TF/PWF
Key Specifications
discharge orientation: center swivel
inlet orientation: center swivel
discharge size (in.): 0.25
default max diameter solids (in.): 0.02
inlet size (in.): 0.25
max flow rate (gpm): 4.8
max diameter solids (in.): 0.02
The Wilden® 00-9930, a 0.25" Pro-Flo® clamped AODD pump built from Polypropylene with PTFE|Neoprene diaphragms and PTFE ball valves, delivers up to 4.8 GPM at 125 PSI across fluid transfer systems. The PTFE IPD reduced-stroke diaphragm design ensures productivity and adaptability in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT center-swivel inlet and threaded NPT center-swivel discharge, designed to meet the needs of many industries, from manufacturing to processing and beyond. CE|UKCA certified.
| WILDEN Pump Description | P.025/PZPPP/TNL/TF/PWF |
|---|---|
| Item Number Pump | 00-9930 |
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NWK |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Polypropylene |
| Diaphragms | Ptfe, Neoprene Back-Up, O-ring, IPD |
| Valve/ Balls | Teflon |
| Valve Seats | PP with Wil-Flex O-Ring |
| Outer Piston | None |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 3,4 |
| Pump Weight Kilo | 1 |
| Specialty Code | #N/A |
Spare Parts
Item Overview for Wilden® 01-6400-03
The Wilden 01-6400-03, a Hex Nut (10-24), Stainless Steel 01-6400-03 Hardware design ensures precision-engineered and reliability.
PERFORMANCE CURVE
To pump 7.6 lpm (2 gpm) against a discharge pressure head of 2.8 bar (40 psig) requires 4.0 bar (58 psig) and 1.0 Nm3 /h (0.6 scfm) air consumption.
SUCTION CURVE
00-1200-58: Wetted Path O-ring in Santoprene
Item: 00-1200-58
Description: Wetted Path O-ring in Santoprene (0.549" ID × 0.103" W)
00-1120-03: Valve Seat for ¼" Pumps, Stainless Steel
Item: 00-1120-03
Description: Valve Seat in Stainless Steel for ¼" Pumps
00-1080-55: Valve Ball for ¼" Pumps, Ptfe
Item: 00-1080-55
Description: Valve Ball in Ptfe for ¼" Pumps
00-1010-58: Diaphragm for 1/4" pumps, Santoprene®
Item: 00-1010-58
Description: Traditional Santoprene® (WFS) diaphragm for 1/4" pumps
01-6100-03: Screw, Hex Head Cap Screw
Item: 01-6100-03
Description: Screw, Hex Head Cap Screw (10-24 X 1 1/2), Stainless Steel
01-6000-03: Screw, Socket Head Cap Screw
Item: 01-6000-03
Description: Screw, Socket Head Cap Screw (1/4-20 X 4 1/2), Stainless Steel
00-7010-03: Pipe Plug
Item: 00-7010-03
Description: Pipe Plug (1/4" NPT), Stainless Steel
00-6800-08: Washer, Disc Spring
Item: 00-6800-08
Description: Washer, Disc Spring (.264 X .374), Steel
00-6505-03: Nut, Square
Item: 00-6505-03
Description: Nut, Square (1/4-20), Stainless Steel
00-5050-03: Combo (Inlet Or Discharge) Manifold for ¼" Stainless Steel Pumps
Item: 00-5050-03
Description: Combo (Inlet Or Discharge) Manifold for ¼" NPT Threaded Stainless Steel Clamped Pumps
Key Specifications
Fluid Connection Inlet Size: 0.25
00-5000-03: Liquid Chamber for ¼" Stainless Steel Pumps
Item: 00-5000-03
Description: Liquid Chamber for ¼" Stainless Steel Clamped Pumps
00-4570-03: Outer Piston for ¼" Stainless Steel
Item: 00-4570-03
Description: Outer Piston for ¼" Stainless Steel Rubber/TPE/PTFE Diaphragm Fitted Pumps
00-3700-20-700: Inner Piston for ¼" Polypropylene
Item: 00-3700-20-700
Description: Inner Piston for ¼" Polypropylene Rubber/TPE/PTFE Diaphragm Fitted Pumps
00-1370-55: Wetted Path O-ring in Ptfe
Item: 00-1370-55
Description: Wetted Path O-ring in Ptfe (0.984" ID × 0.139" W)
