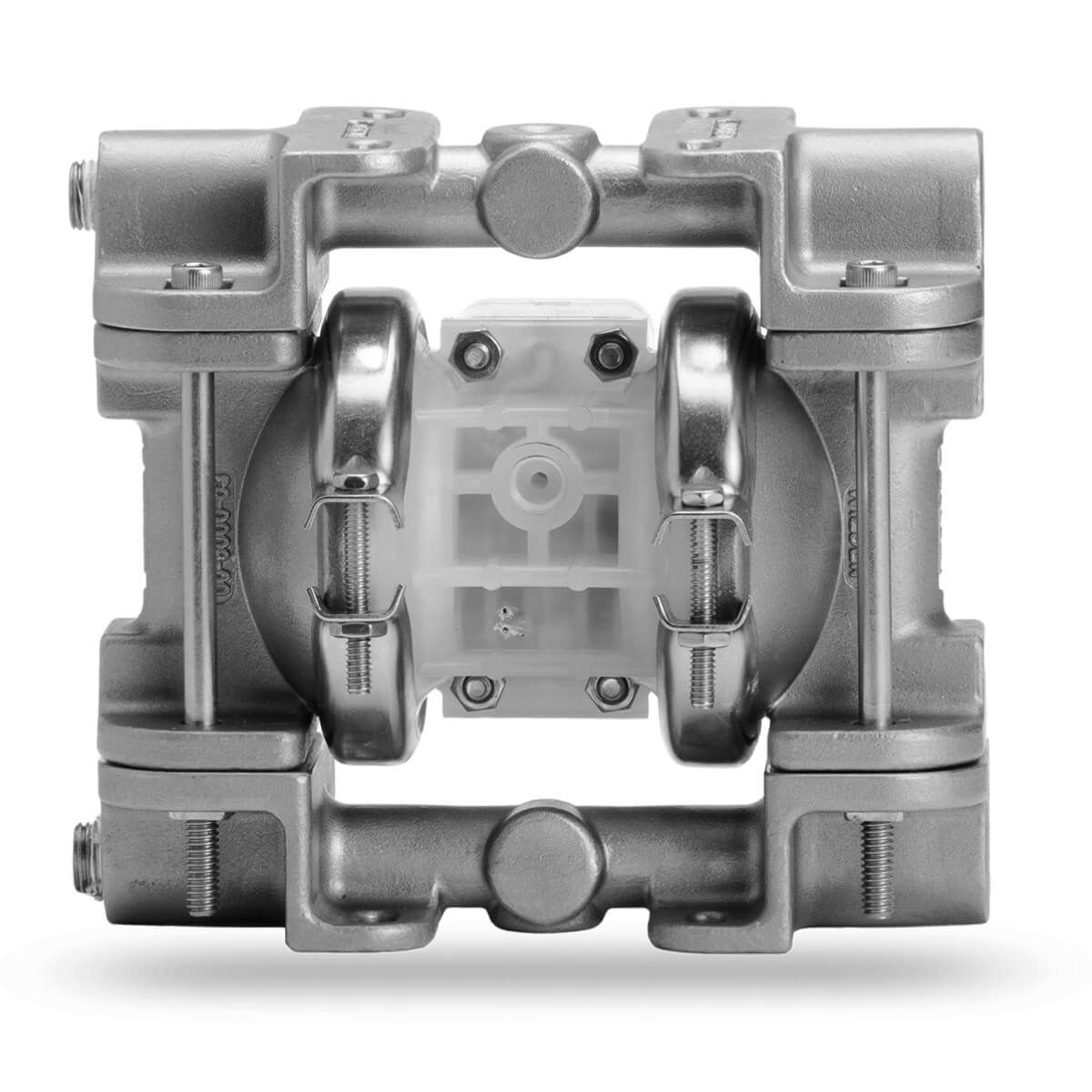

P.025/AZPPP/TEL/TF/ATF 00-9936 wilden AODD Pump, Aluminum, 1/4" Pro-Flo
P.025/AZPPP/TEL/TF/ATF 00-9936 wilden AODD Pump, Aluminum, 1/4" Pro-Flo
AODD Pump, Aluminum, 1/4" Pro-Flo®, Clamped, Threaded, w/ PTFE
Item: 00-9936
Description: P.025/AZPPP/TEL/TF/ATF
Key Specifications
discharge orientation: side right
inlet orientation: side right
discharge size (in.): 0.25
default max diameter solids (in.): 0.02
max flow rate (gpm): 5.0
inlet size (in.): 0.25
max diameter solids (in.): 0.02
The Wilden® 00-9936, a 0.25" Pro-Flo® clamped AODD pump built from Aluminum with PTFE|EPDM diaphragms and PTFE ball valves, delivers up to 5 GPM at 125 PSI across fluid transfer systems. The TPE IPD reduced-stroke diaphragm design ensures efficiency and sustainability in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT side-right inlet and threaded NPT side-right discharge, designed with adaptability in mind for cross-industry use. CE|UKCA certified.
| WILDEN Pump Description | P.025/AZPPP/TEL/TF/ATF |
|---|---|
| Item Number Pump | 00-9936 |
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NWK |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Aluminum |
| Diaphragms | Ptfe, Epdm Back-Up O-Ring, IPD |
| Valve/ Balls | Teflon |
| Valve Seats | Aluminum with Teflon O-Ring |
| Outer Piston | None |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 6,3 |
| Pump Weight Kilo | 2 |
| Specialty Code | #N/A |
