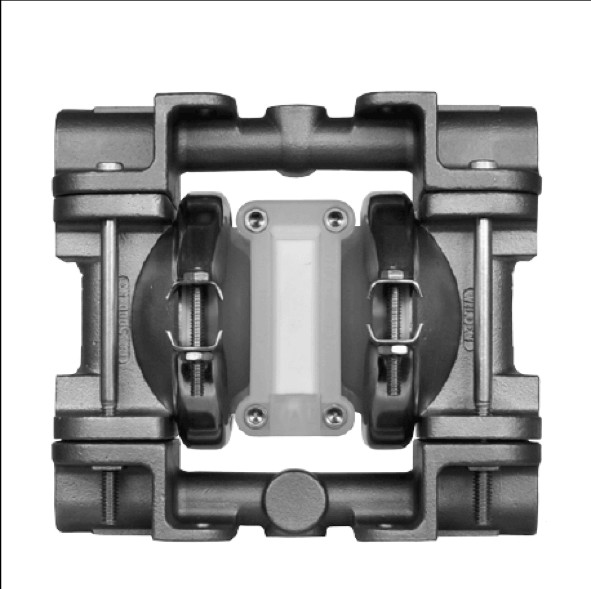

XP.025/SZPPP/TEL/TF/STV 00-9938 wilden AODD Pump, Stainless Steel, 1/4"
XP.025/SZPPP/TEL/TF/STV 00-9938 wilden AODD Pump, Stainless Steel, 1/4"
AODD Pump, Stainless Steel, 1/4" Pro-Flo®, Clamped, Threaded, w/ PTFE
Item: 00-9938
Description: XP.025/SZPPP/TEL/TF/STV
The Wilden® 00-9938, a 0.25" Pro-Flo® clamped AODD pump built from Stainless
Steel with PTFE|EPDM diaphragms and PTFE ball valves, delivers up to 5 GPM at 125
PSI across fluid transfer systems. The TPE IPD reduced-stroke diaphragm design ensures
productivity and robustness in slurry, abrasive, or viscous applications (up to 125000 cP).
Configured with threaded NPT side-right inlet and threaded NPT side-right discharge,
frequently implemented in mixed-industry operations requiring dependable performance.
ATEX|CE|UKCA certified.
Key Specifications
discharge orientation: side right
inlet orientation: side right
default max diameter solids (in.): 0.02
discharge size (in.): 0.25
inlet size (in.): 0.25
max flow rate (gpm): 5.0
max diameter solids (in.): 0.02
| WILDEN Pump Description | XP.025/SZPPP/TEL/TF/STV |
|---|---|
| Item Number Pump | 00-9938 |
| Port Size | 1/4" |
| Air Kit | NAK |
| Wet Kit | NWK |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Stainless Steel |
| Diaphragms | Ptfe, Epdm Back-Up O-Ring, IPD |
| Valve/ Balls | Teflon |
| Valve Seats | SS with Ptfe Encapsulated Viton |
| Outer Piston | None |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 10,7 |
| Pump Weight Kilo | 4 |
| Specialty Code | #N/A |
Wilden 0.5" Surge Dampener, Stainless Steel NPT PTFE Elastomers
Item: 72-7081
Description: Wilden® Equalizer® Surge Dampener SD Series creates laminar process flow by
reducing and/or eliminating pump pulsation. SD Equalizers do this by using the same air supply
as the pump to counter the pressure changes within the system. When installed properly using
the same air supply as the pump, SD Equalizers equalize the correct air pressure to match variations
in liquid flow or discharge pressure. Lowers system maintenance costs Protects in-line equipment
Self-adjusts to varying system pressure

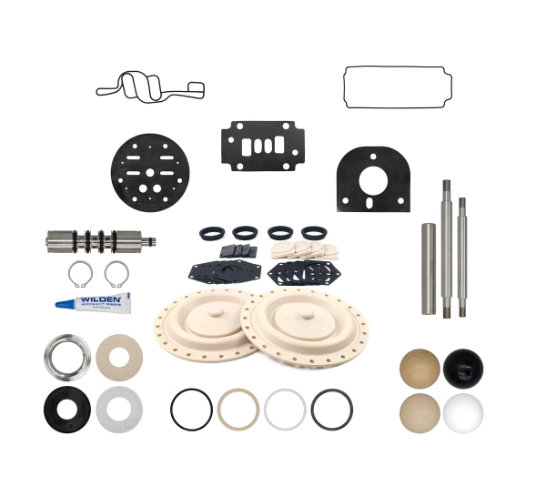

Spare Parts
Key Specifications
fluid connection inlet size (in.): 0.5"
01-6400-03: Hex Nut
Item: 01-6400-03
Description: Hex Nut (10-24), Stainless Steel
01-6100-03: Screw, Hex Head Cap Screw
Item: 01-6100-03
Description: Screw, Hex Head Cap Screw (10-24 X 1 1/2), Stainless Steel
00-7010-03: Pipe Plug
Item: 00-7010-03
Description: Pipe Plug (1/4" NPT), Stainless Steel
00-6505-03: Nut, Square
Item: 00-6505-03
Description: Nut, Square (1/4-20), Stainless Steel
00-5050-03: Combo (Inlet Or Discharge) Manifold for ¼" Stainless Steel Pumps
Item: 00-5050-03
Description: Combo (Inlet Or Discharge) Manifold for ¼" NPT Threaded Stainless Steel Clamped Pumps
Key Specifications
fluid connection inlet size (in.): 0.25
00-5000-03: Liquid Chamber for ¼" Stainless Steel Pumps
Item: 00-5000-03
Description: Liquid Chamber for ¼" Stainless Steel Clamped Pumps
00-3700-20-700: Inner Piston for ¼" Polypropylene
Item: 00-3700-20-700
Description: Inner Piston for ¼" Polypropylene Rubber/TPE/PTFE Diaphragm Fitted Pumps
00-1370-55: Wetted Path O-ring in Ptfe
Item: 00-1370-55
Description: Wetted Path O-ring in Ptfe (0.984" ID × 0.139" W)
00-1206-60: Wetted Path O-ring in Teflon Encapsulated FKM
Item: 00-1206-60
Description: Wetted Path O-ring in Teflon Encapsulated FKM (0.549" ID × 0.103" W)
00-1120-03: Valve Seat for ¼" Pumps, Stainless Steel
Item: 00-1120-03
Description: Valve Seat in Stainless Steel for ¼" Pumps
00-1080-55: Valve Ball for ¼" Pumps, Ptfe
Item: 00-1080-55
Description: Valve Ball in Ptfe for ¼" Pumps
00-1070-54: Wetted Path O-ring in Epdm
Item: 00-1070-54
Description: Wetted Path O-ring in Epdm (2.72" ID × 0.250" W)
00-1030-55: Diaphragm for 1/4" pumps, PTFE
Item: 00-1030-55
Description: Intergral Piston (IPD) PTFE (T_L) diaphragm for 1/4" pumps
