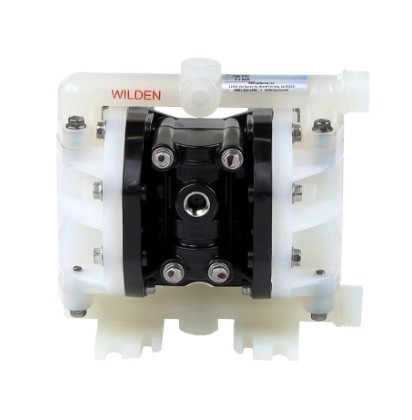

PS25/PPPPP/TWS/TF/PTF 00-10181 AODD Pump, Polypropylene, 1/4" Pro-Flo® SHIFT, Bolted, Threaded, w/ PTFE

The Wilden® 00-10181-R, a 0.25" Pro-Flo® SHIFT bolted AODD pump built from Polypropylene

 with PTFE|Santoprene® diaphragms and PTFE ball valves, delivers up to 5.7 GPM at 120 PSI across

fluid transfer systems. The traditional full-stroke diaphragm design ensures capability and longevity

in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded NPT side-right

 inlet and threaded NPT side-right discharge, fits seamlessly into different process systems across many sectors. CE|UKCA certified.

AODD Pump, Polypropylene, 1/4" Pro-Flo® SHIFT, Bolted, Threaded, w/ PTFE

Item: 00-10181-R

Description: PS25/PPPPP/TWS/TF/PTF

Key Specifications

discharge orientation: side right

inlet orientation: side right

default max diameter solids (in.): 0.06

discharge size (in.): 0.25

inlet size (in.): 0.25

max flow rate (gpm): 5.7

max diameter solids (in.): 0.06

Attributes

Model (in.):

0.25

Technical Construction:

BOLTED

Wetted Path Material:

POLYPROPYLENE

Diaphragm Material:

PTFE

Diaphragm Design:

TRADITIONAL

Diaphragm Stroke:

Full-Stroke

Connection Standard:

NPT

Inlet Size (in.):

0.25

Inlet Orientation:

SIDE RIGHT

Discharge Size (in.):

0.25

Discharge Orientation:

SIDE RIGHT

Outer Piston Materials:

POLYPROPYLENE

Air Side Material:

POLYPROPYLENE

Valve Material:

PTFE

Valve Type:

VALVE BALL

Valve Seat MATERIAL:

POLYPROPYLENE

O Rings Gasket Material:

PTFE

Hardware Material:

STAINLESS STEEL

Muffler Material:

Plastic

Self Priming:

YES

Power Source:

COMPRESSED AIR

Air Inlet Connection:

0.25" FNPT

Maximum Allowable Operating Pressure (psig):

120.0

Max Air Pressure (psig):

120.0

Max Diameter Solids (in.):

0.06

Max Flow Rate (gpm):

5.7

Flow Rate 40 Psi (gpm):

4.2

Flow Rate 50 Psi (gpm):

3.6

Flow Rate 60 Psi (gpm):

3.0

Flow Rate 70 Psi (gpm):

2.2

Flow Rate 80 Psi (gpm):

1.7

Flow Rate 90 Psi (gpm):

1.2

Flow Rate 100 Psi (gpm):

0.7

Flow Rate 120 Psi (gpm):

0.0

Max Suction Lift Dry (ft.):

14.0

Max Operating Temperature (°F):

175.0

Min Operating Temperature (°F):

40.0

Max Viscosity (cP):

125000

Max Air Consumption (psi):

7.0

Atex Rated:

NO

CE:

YES

UKCA:

YES

FDA:

NO

3A:

NO

EHEDGE:

NO

UL:

NO

CSA:

NO

Shipping Weight (lbs):

4
