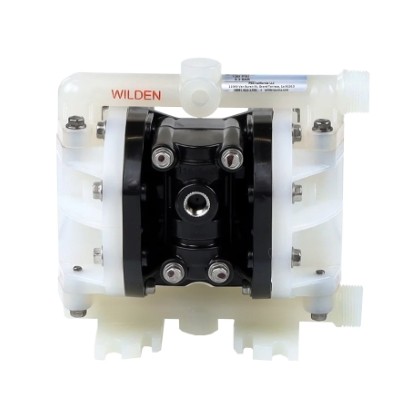

PS25/PPPPP/ZWS/WF/PEP 00-10182  WILDEN AODD Pump, Polypropylene, 1/4" Pro-Flo

The Wilden® 00-10182-R, a 0.25" Pro-Flo® SHIFT bolted AODD pump built from Polypropylene

with Santoprene® diaphragms and Santoprene® ball valves, delivers up to 5.7 GPM at 120 PSI

across fluid transfer systems. The EZ-Install full-stroke diaphragm design ensures capability and

 longevity in slurry, abrasive, or viscous applications (up to 125000 cP). Configured with threaded

NPT side-right inlet and threaded NPT side-right discharge, commonly used across numerous

 sectors thanks to its dependable design. CE|UKCA certified.

AODD Pump, Polypropylene, 1/4" Pro-Flo® SHIFT, Bolted, Threaded, w/ Santoprene®

Item: 00-10182-R

Description: PS25/PPPPP/ZWS/WF/PEP

Key Specifications

discharge orientation: side right

inlet orientation: side right

discharge size (in.): 0.25

default max diameter solids (in.): 0.06

inlet size (in.): 0.25

max flow rate (gpm): 5.7

max diameter solids (in.): 0.06

Attributes

Model (in.):

0.25

Technical Construction:

BOLTED

Wetted Path Material:

POLYPROPYLENE

Diaphragm Material:

Santoprene®

Diaphragm Design:

EZ-INSTALL

Diaphragm Stroke:

Full-Stroke

Connection Standard:

NPT

Inlet Size (in.):

0.25

Inlet Orientation:

SIDE RIGHT

Discharge Size (in.):

0.25

Discharge Orientation:

SIDE RIGHT

Outer Piston Materials:

POLYPROPYLENE

Air Side Material:

POLYPROPYLENE

Valve Material:

Santoprene®

Valve Type:

VALVE BALL

Valve Seat MATERIAL:

POLYPROPYLENE

O Rings Gasket Material:

EPDM

Hardware Material:

STAINLESS STEEL

Muffler Material:

Plastic

Self Priming:

YES

Spare Parts

Item Overview for Wilden® 01-6400-03

The Wilden 01-6400-03, a Hex Nut (10-24), Stainless Steel 01-6400-03 Hardware design ensures precision-engineered and reliability.

PERFORMANCE CURVE

To pump 7.6 lpm (2 gpm) against a discharge pressure head of 2.8 bar (40 psig) requires 4.0 bar (58 psig) and 1.0 Nm3 /h (0.6 scfm) air consumption.

SUCTION CURVE

00-1200-58: Wetted Path O-ring in Santoprene

Item: 00-1200-58

Description: Wetted Path O-ring in Santoprene (0.549" ID × 0.103" W)

00-1120-03: Valve Seat for ¼" Pumps, Stainless Steel

Item: 00-1120-03

Description: Valve Seat in Stainless Steel for ¼" Pumps

00-1080-55: Valve Ball for ¼" Pumps, Ptfe

Item: 00-1080-55

Description: Valve Ball in Ptfe for ¼" Pumps

00-1010-58: Diaphragm for 1/4" pumps, Santoprene®

Item: 00-1010-58

Description: Traditional Santoprene® (WFS) diaphragm for 1/4" pumps

01-6100-03: Screw, Hex Head Cap Screw

Item: 01-6100-03

Description: Screw, Hex Head Cap Screw (10-24 X 1 1/2), Stainless Steel

01-6000-03: Screw, Socket Head Cap Screw

Item: 01-6000-03

Description: Screw, Socket Head Cap Screw (1/4-20 X 4 1/2), Stainless Steel

00-7010-03: Pipe Plug

Item: 00-7010-03

Description: Pipe Plug (1/4" NPT), Stainless Steel

00-6800-08: Washer, Disc Spring

Item: 00-6800-08

Description: Washer, Disc Spring (.264 X .374), Steel

00-6505-03: Nut, Square

Item: 00-6505-03

Description: Nut, Square (1/4-20), Stainless Steel

00-5050-03: Combo (Inlet Or Discharge) Manifold for ¼" Stainless Steel Pumps

Item: 00-5050-03

Description: Combo (Inlet Or Discharge) Manifold for ¼" NPT Threaded Stainless Steel Clamped Pumps

Key Specifications

Fluid Connection Inlet Size: 0.25

00-5000-03: Liquid Chamber for ¼" Stainless Steel Pumps

Item: 00-5000-03

Description: Liquid Chamber for ¼" Stainless Steel Clamped Pumps

00-4570-03: Outer Piston for ¼" Stainless Steel

Item: 00-4570-03

Description: Outer Piston for ¼" Stainless Steel Rubber/TPE/PTFE Diaphragm Fitted Pumps

00-3700-20-700: Inner Piston for ¼" Polypropylene

Item: 00-3700-20-700

Description: Inner Piston for ¼" Polypropylene Rubber/TPE/PTFE Diaphragm Fitted Pumps

00-1370-55: Wetted Path O-ring in Ptfe

Item: 00-1370-55

Description: Wetted Path O-ring in Ptfe (0.984" ID × 0.139" W)
